Navigation processor, location/task/design/function - GF82.85-P-3103TU

MODEL 211.0/2 up to 30.6.06 with CODE (527) Navigation module for COMAND with CODE (528) HIGH Class USA

Shown on model 211.0

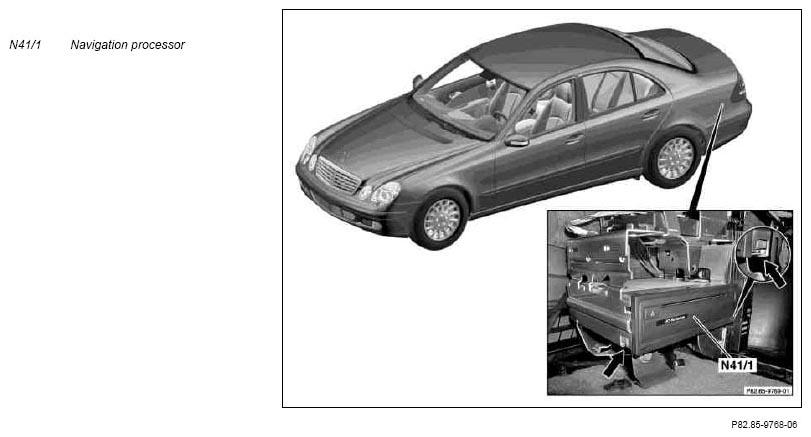

Fig 1: Locating Navigation Processor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Navigation processor, location	The navigation processor (N41/1) is located on the left side wall in the luggage compartment.
Navigation processor, task		GF82.85-P-3103-03TU
Navigation processor, design	GPS computer Yaw rate sensor (gyro sensor) DVD disk drive MOST interface
Navigation processor, function		GF82.85-P-3103-07TU
