Operating-display unit with control unit, location/task/design/function - GF82.85-P-3114TJ

MODEL 211.0/2 with CODE (529) HIGH Class Japan

Shown on model 211.0

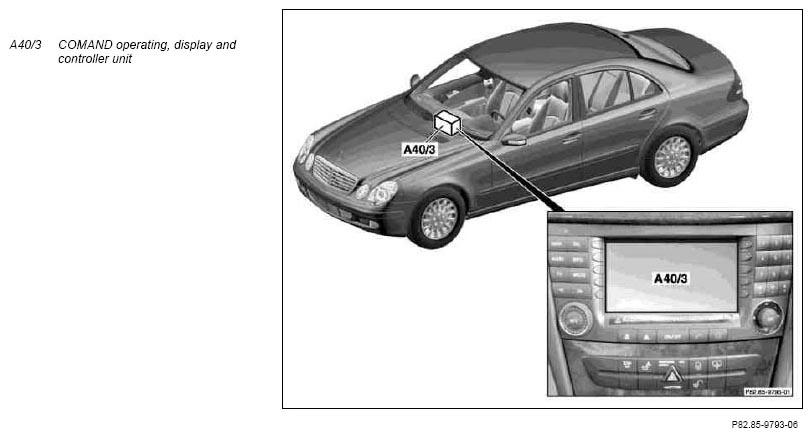

Fig 1: Locating COMAND Operating, Display And Control Unit
G07255006Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operating display unit with control unit, location The COMAND operating, display and controller unit (A40/3) is installed in the 2-DIN slot of the center console between the AAC [KLA] control and operating unit (N22) and the upper control panel control unit (N72/1).
Operating, display and control unit, task Central control of the following systems:
  • Audio
  • Telephone
  • Navigation system
  • Voice control system (VCS [SBS])
  • TV and video DVD
  • External devices via AUX connection

Operating, display unit with control unit, design   GF82.85-P-3114-07TJ
Operating, display unit with control unit, function   GF82.85-P-3114-08TJ
