Component description for charge air temperature sensor - GF07.04-P-6050P

ENGINES 642 in MODEL 164.1/8, 203.0/2, 221.0/1, 251.0/1 up to model year 2008/YoM 07

ENGINES 642 in MODEL 209.3/4, 211.0/2/6, 219.3

ENGINES 642 in MODEL 463

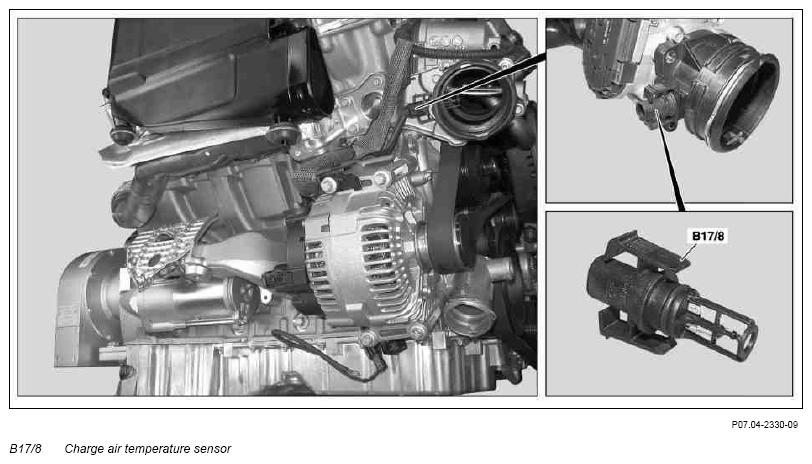

Location

The charge air temperature sensor sits in the plastic housing in front of the throttle valve actuator (M16/6).

Task

The charge air temperature sensor detects the charge air temperature and sends the signal to the CDI control unit (N3/9).

Design

The charge air temperature sensor possesses an integral measuring resistor with a negative temperature coefficient (NTC).

Function

The electrical resistance of the NTC measuring resistor varies according to charge air temperature. Electrical resistance decreases as temperature increases.
