Front passenger airbag, component description - GF91.60-P-4038T

MODELS 211.0/2

Location

The front passenger airbag and the associated squibs are located in the instrument panel above the glove box.

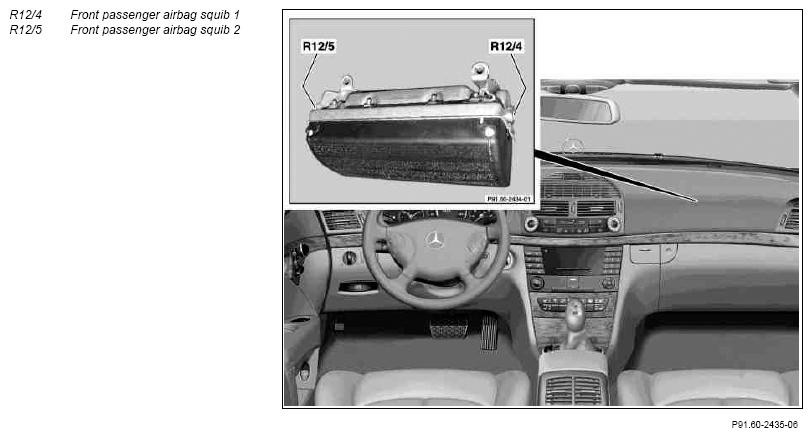

Fig 1: Locating Front Passenger Airbag Squibs

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

If a head-on collision occurs, the front passenger is protected against injuries by the front passenger airbag. The front passenger airbag is designed in two stages and is started by the squibs, and thus its deployment can be controlled.
