ESC [ELV] motor group, location/task/design/function - GF46.15-P-4101T
MODEL 211.0/2 with CODE (275a) Memory package (driver's seat, steering column, mirrors)
| Location of steering column adjustment motor group | The steering column adjustment motor group (M20) is located on the steering column. |
| Steering column adjustment motor group, task | Vertical and longitudinal adjustment of the steering column. |

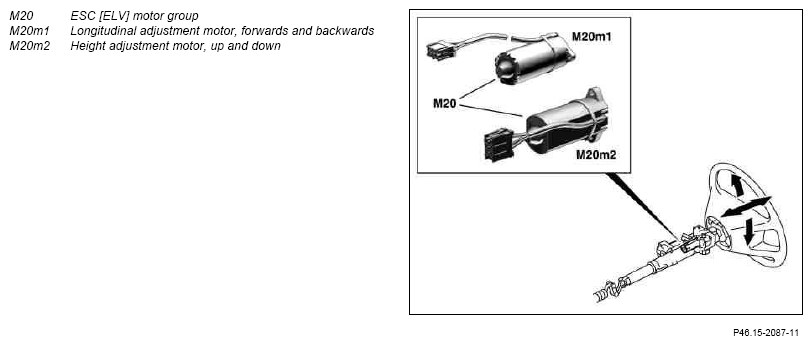

| Steering column adjustment motor group, design | The steering column adjustment motor group (M20) consists of the longitudinal adjustment motor, forwards and backwards (M20m1) and the height adjustment motor, up and down (M20m2). |
| Function of steering column adjustment motor group | The longitudinal adjustment motor, forwards and backwards (M20m1) moves the steering column towards the driver or away from him. The height adjustment motor, up and down (M20m2) makes it possible to adjust the height of the steering column. |
