Check and replace rubber boot - AR46.40-P-0400T

MODEL 211 (except 211.08/09/28/29)

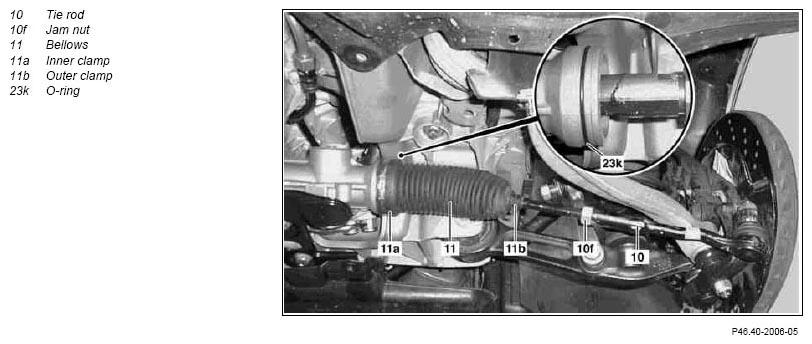

Fig 1: Identifying Rubber Boot Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Checking
1.1	Remove bottom section of soundproofing	Vehicles with diesel engines	AR94.30-P-5300T
1.2	Remove engine compartment paneling	Vehicles with gasoline engines	AR61.20-P-1105T
2	Check bellows (11)	Never check bellows by pressing in or around raised bead as this will damage bellows and eventually cause leaks. Perfect sealing of the bellows is absolutely vital for correct functioning of the rack-and-pinion steering, so perform the visual inspection as follows: Raise vehicle at front axle. Extend the bellows by turning the steering onto left wheel lock or right wheel lock and check for damage (cracks, chafing marks and intrusions) in the process, install new bellows if necessary.
	Remove/install
3	Remove track rod (10)		AR46.40-P-0200T
4	Unscrew lock nut (10f)
5	Detach outer clamp (11b)
6	Detach inner clamp (11a)		AR46.40-P-0400-01GH
7	Pull off bellows (11)	Installation with boot with diaphragm valve:  Push the boot onto the steering gear housing and position.	AR46.40-P-0400-02CW
8	Install new O-ring (23k).
9	Check steering rack and inner tie rod thrust joint for corrosion and play	If the steering rack is already corroded and the steering is leaking as a result, the rack-and-pinion steering must be replaced complete: ↓ Remove rack-and-pinion steering.	AR46.20-P-0600T
		If the ball joint is worn, replace the inside track rod: ↓ Remove inner tie rod with axial joint.	AR46.40-P-0201T
10	Install in the reverse order
