Location/task/design/function of torque converter lockup clutch - GF27.20-P-5101N
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 463.303/340/341
| Torque converter lockup clutch, location | The torque converter lockup clutch is integrated in the torque converter. | |
| Torque converter lockup clutch, task | To minimize the power losses of the torque converter by reducing converter slip, to reduce engine speed as a result and to improve the efficiency of the transmission. | |

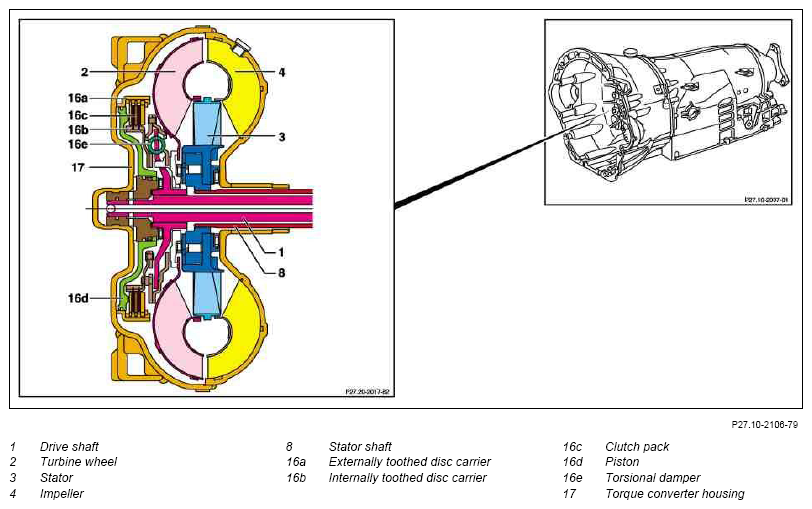

| Torque converter lockup clutch, design | The external plate carrier (16a) is connected to the impeller (4) via the torque converter housing (17). The internal plate carrier (16b) is connected to the turbine wheel (2). | |
| Torque converter lockup clutch, function | GF27.20-P-5101-02N |
