Accelerator pedal sensor, component description - GF30.20-P-2010G

MODEL 463.306/336/346 as of model year 2011/YoM 10

MODEL 463.202/222/236/237 as of model year 2009/YoM 08

MODEL 463.247/248/249/254 up to 31.8.08 as of model year 2007

MODEL 463.270/271/303/340/341 as of model year 2007

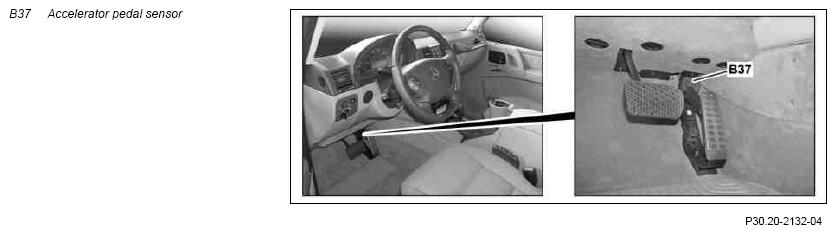

Fig 1: Identifying Accelerator Pedal Sensor

Courtesy of MERCEDES-BENZ USA

Location

The accelerator pedal sensor is located in the accelerator pedal module.

Task

The acceleration request from the driver is read in electronically via the accelerator pedal sensor from the CDI control unit (N3/9) (for a diesel engine) or from ME-SFI [ME] control unit (N3/10) (for a gasoline engine) and transferred to the throttle valve actuator (M16/6).

Function

When the driver actuates the accelerator pedal, the integrated hall sensor with double recognition mode recognizes the actuation path and the actuation speed.

In case of failure of one of the signals the CDI control unit or ME-SFI [ME] control unit can refer back to a second signal from the Hall sensor.
