Purge control valve function - GF47.30-P-4030-02AM

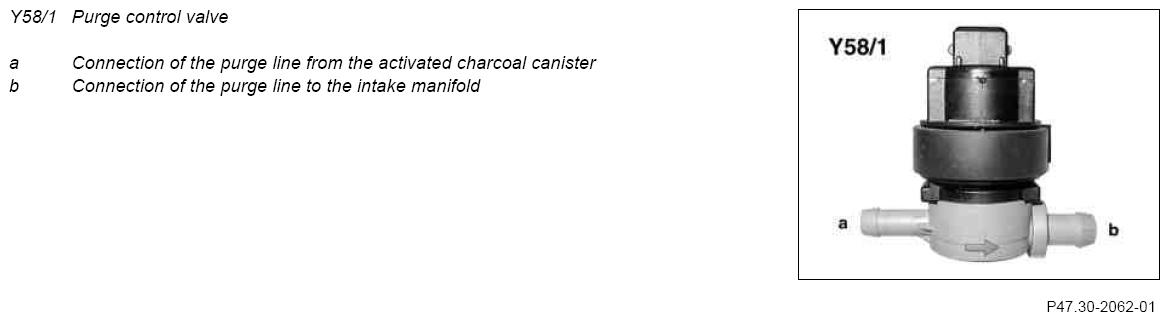

The purge control valve is actuated on the ground side by the ME-SFI [ME] control unit (N3/10) by means of a PWM signal (ground side) according to the operating conditions engine. The passage of the purge line from the activated charcoal canister to the intake manifold (a ==> b) opens and the fuel vapors are suctioned out of the activated charcoal canister.
The voltage supply to the purge control valve takes place from "circuit 87 M".
