Crankshaft position sensor - location/task/design/function - GF07.04-P-4116AM

ENGINE 113.990 /991 /993 up to Model Year 8

ENGINE 113.992 /995

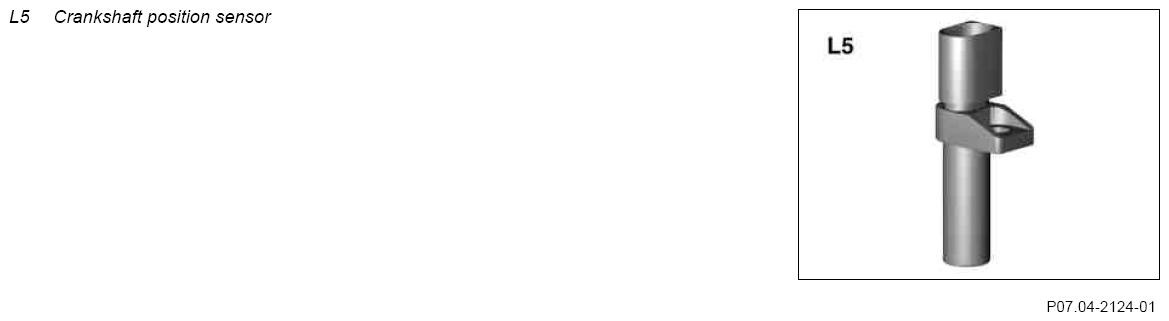

Fig 1: Identifying Crankshaft Position Sensor

Courtesy of MERCEDES-BENZ USA

	Crankshaft position sensor position		GF07.04-P-4116-02AM
	Crankshaft position sensor task	The crankshaft position sensor detects the crankshaft position and the engine speed and emits an appropriate voltage signal to the ME-SFI [ME] control unit (N3/10).
	Crankshaft position sensor design	Inductive sensor (coil) with 2-pin plug contact
	Crankshaft position sensor function		GF07.04-P-4116-01AM
