Transmission overload protection, function - GF07.61-P-4026AM

ENGINE 113.990 #2 in MODEL 211, 219

ENGINE 113.991 #2 in MODEL 215, 220

ENGINE 113.992 #2 in MODEL 230 up to Model Year 2008

ENGINE 113.993 #2 in MODEL 463 up to 31.5.12

ENGINE 113.995 #2 in MODEL 230 up to Model Year 2008

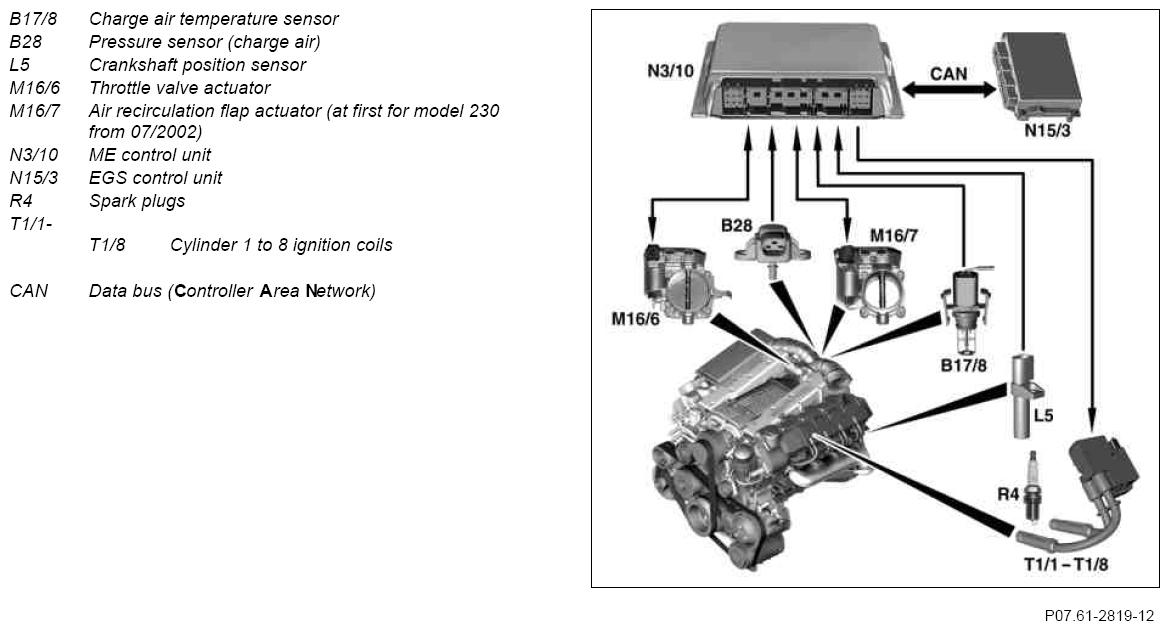

The transmission overload protection protects the shift elements of the automatic transmission (722.6) from excessive thermal stress during load changes in the upper engine speed range.

Engine torque is reduced by briefly retarding the ignition or closing the throttle valve and opening the recirculated air flap during gearshifts.

The ME control unit is supplied with a signal via the CAN data bus by the ETC control unit for this purpose.

The ME control unit controls in line with the performance map, if altering the ignition angle is sufficient or if the throttle valve and recirculated air flap must be retarded.

	Crankshaft position sensor, location/task/design/function		GF07.04-P-4116AM
	Pressure sensor, location/task/design/function		GF07.04-P-5014AM
	Charge air temperature sensor, location/task/design/function		GF07.04-P-5039AM
	ME-SFI control unit, location/task/design/function		GF07.61-P-5000AM
	Recirculated air flap actuator location/task/design/function	except model 230 up to 06/2002	GF09.50-P-3101AM
	Spark plugs, location/task/design/function		GF15.10-P-3101AM
	Ignition coils, location/task/design/function		GF15.10-P-3102AM
	Throttle valve actuator, location/task/design/function		GF30.22-P-4101AM
