Axle Alignment Check With Quick Clamping System Not Possible (LI40.20-P-060813)

Publication date: 2015-02-11
Reference number: LI40.20-P-060813

AXLE ALIGNMENT CHECK WITH QUICK CLAMPING SYSTEM NOT POSSIBLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI40.20-P-060813 Version 1, Date of Issue: February 11, 2015

MERCEDES-BENZ:	MODEL 461/463
DESIGN GROUP:	40.20 Chassis alignment check

COMPLAINT

The axle alignment check using the MB quick clamping devices is not possible; the quick clamping devices tilt on the wheel. The measurement results are erroneous.

CAUSE

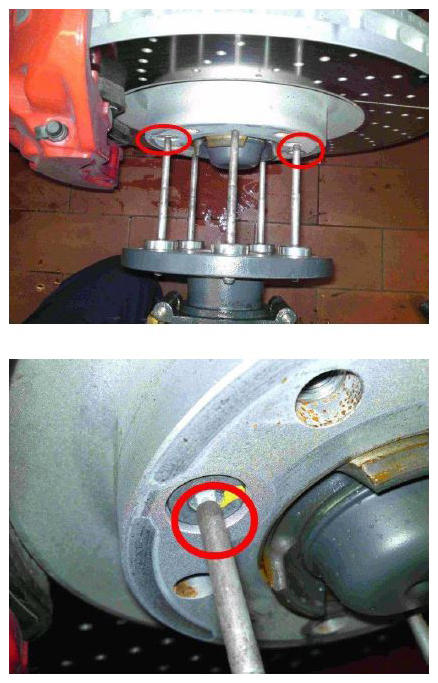

The mounting bolt of the brake disk is directly below a mounting hole on the rim for the quick clamping system.

Because of this the quick clamping system cannot be aligned exactly; it can tilt and produce erroneous measurement results.

AMG models have a second countersunk hole in the brake disk with no bolt; this is located below another mounting hole.

ATTACHMENTS

File	Description
	Axle alignment check with MB quick clamping system

REMEDY

The axle alignment check on G-Class vehicles may only be performed using universal adapters.

Use of the MB quick clamping system is not permissible.
