Steering column adjustment, function - GF46.15-P-2000GZ

MODEL 164.1 /8, 251 with CODE (441) Electrically adjustable steering column

Shown on model 164.1 without code (443)

Steering wheel heater

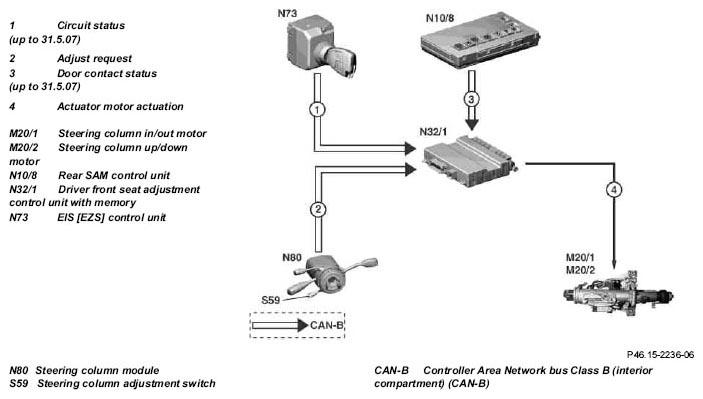

Fig 1: Steering Column Adjustment Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements:

Circuit 15R On or driver door open (up to 31.5.07)

Function

The steering column can be adjusted by means of the steering column adjustment switch or the steering column adjustment/Steering wheel heater switch (S59/1) (only model 164.8 with code (443) Steering wheel heater). The corresponding adjustment request is transmitted from the steering column module via CAN-B to the driver front seat adjustment control unit with memory.

The driver-side front seat adjustment control unit with memory the actuates discretely the corresponding steering column in/out motor as well as the steering column up/down motor.

If a blockage or defective Hall sensor is detected by the driver front seat adjustment control unit with memory, the adjustment is aborted after 2 s.

Adjustment cannot be performed again in the same direction until ≥ 2 s after the steering column adjustment switch or steering column adjustment/steering wheel heater switch has been released.

Adjustment in the opposite direction is possible immediately.

Steering column adjustment switch, component description	S59	GF46.15-P-5010GZ
Steering column adjustment motor group, component description	M20/1, M20/2	GF46.15-P-5020GZ
Steering column module component description	N80 Model 164	GF54.21-P-6050GZ
	Model 251	GF54.21-P-6050RT
