Power steering pump, location / task / design / function - GF46.30-P-2100R: Notes

MODEL 230 except CODE (487a) Active body control (ABC)

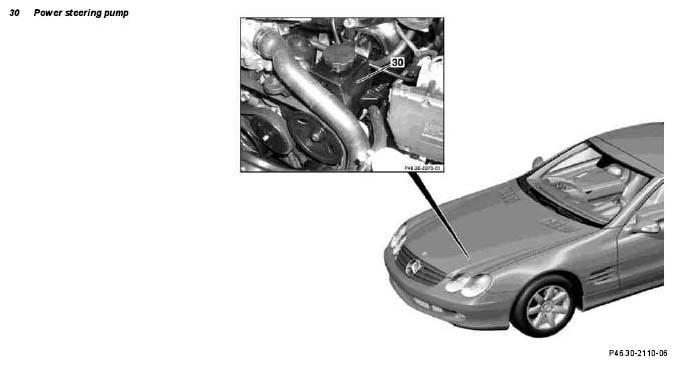

Fig 1: Identifying Power Steering Pump Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Power steering pump, location	The power steering pump (30) is mounted on the left front end of the engine.
	Power steering pump, task	Supplies the steering gear with pressure oil irrespective of engine speed.
	Power steering pump, design	Principle of the vane-type pump.
	Power steering pump, function		GF46.30-P-2100-01B
