Steering column adjustment switch, location/design/function - GF46.15-P-5000R

MODEL 230

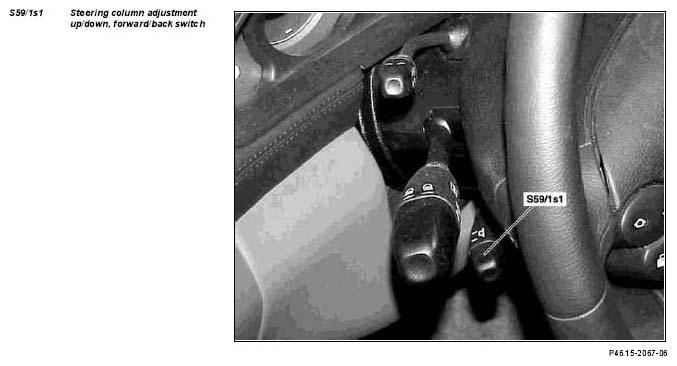

Fig 1: Identifying Steering Column Adjustment Switch Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Steering column adjustment switch, location	On the steering column module (N80)  on the left-hand side.
	Steering column adjustment switch, design	The steering column adjustment switch is a steering column switch that can be moved in four directions
	Steering column adjustment switch, function	The switch is a selection switch. It activates the function 'steering column': forwards/backwards or up/down.
