Air ducting, location/task/function - GF83.10-P-2182P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0/ 2/ 7

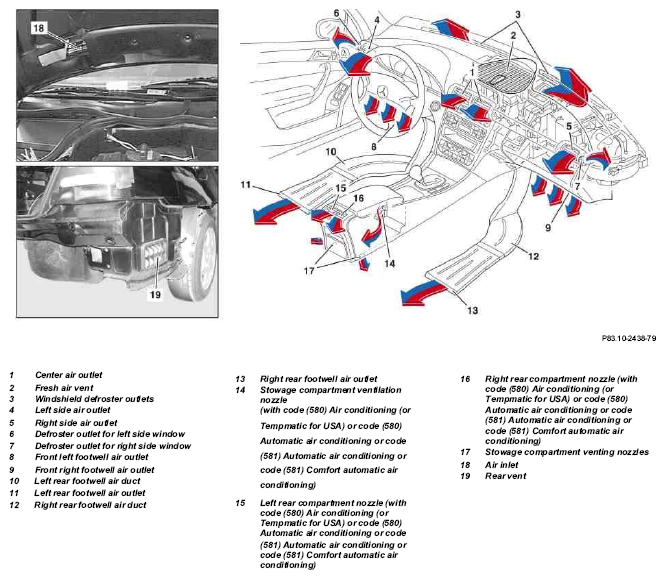

Shown on model 203.0 up to 23.4.04 with code (581) automatic air conditioning
| Air ducting, location | |||
| Air ducting, task | GF83.10-P-2182-01P | ||
| Air ducting, function | GF83.10-P-2182-02P |
