Condenser location/task/function - GF83.40-P-2152P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 /2 /7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

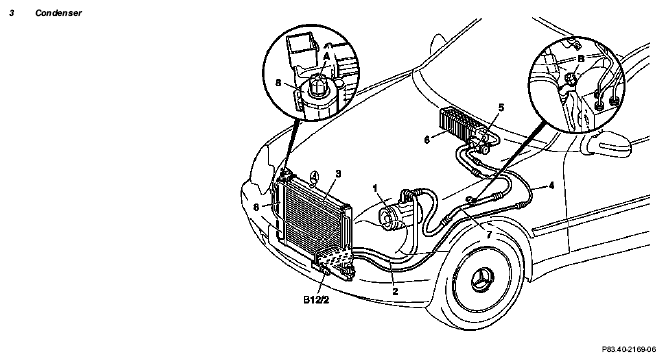

| Condenser position | The condenser (3) is located behind the radiator grille directly in front of the radiator. | ||
| Condenser task | The condenser (3) ensures that the refrigerant coming from the evaporator changes state from gas to liquid. | ||
| Condenser function | GF83.40-P-2120-01P |
