Fluid reservoir location/task/design/function - GF83.40-P-2122P

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203.0 /2 /7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

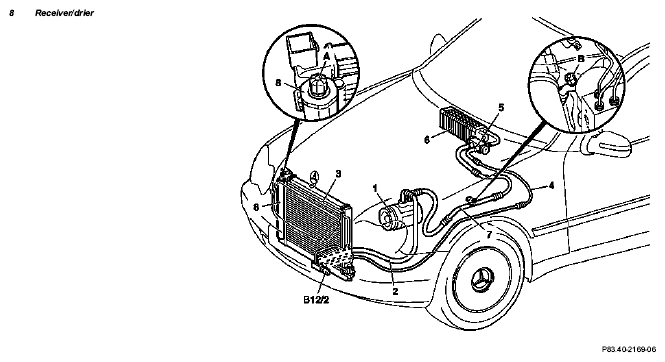

Fig 1: Identifying Receiver/Drier

Fluid reservoir, position	The receiver (8) is located on the right-hand side of the condenser in the front of the engine compartment.
Receiver task	Filtering chemical and mechanical impurities out of the refrigerant Volume storage for the refrigerant Draining of the refrigerant
Fluid reservoir, design	The receiver/drier (8) can be partially disassembled and consists of a housing, a cover and a filter cartridge. As a result it is possible to replace separately the filter cartridge inside the receiver/drier (8) separately.
Fluid reservoir function		GF83.40-P-2122-01P
