Heater box function - GF83.20-P-2103-02P

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

Heating mode

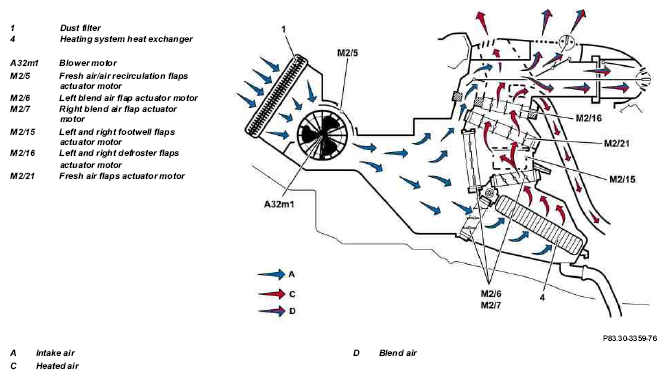

Fig 1: Identifying Function Of Heater Box Heating Mode

Heater operation, function

During heater operation, the intake air (A) is drawn in by the blower motor (A32m1) as a function of the position of the fresh air/air recirculation flap. The intake air (A) cleaned by the dust filter (1) is routed, as a function of the position of the blend air flaps, along the heater heat exchanger (4) through which the coolant flows and heated in the process.

The heated air (C) is routed to the respective air outlets as a function of the positions of the footwell flaps, of the defroster flaps and of the ventilation flaps.

Normal mode

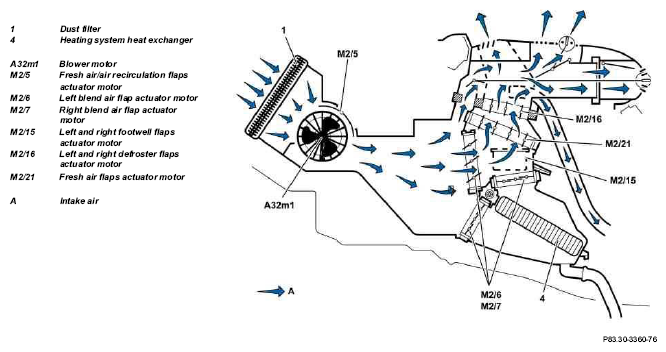

Fig 2: Identifying Function Of Heater Box Normal Mode

Normal mode, function

In normal mode, the intake air (A) is drawn in by the blower motor (A32m1) as a function of the position of the fresh air/air recirculation flap. The intake air (A) cleaned by the dust filter (1) is routed, as a function of the position of the blend air flaps, along the heater heat exchanger (4) through which the coolant flows.

The fresh air drawn in (A) is routed to the respective air outlets as a function of the position of the footwell flaps, of the defroster flaps and of the ventilation flaps.

Blended air mode with recirculated air

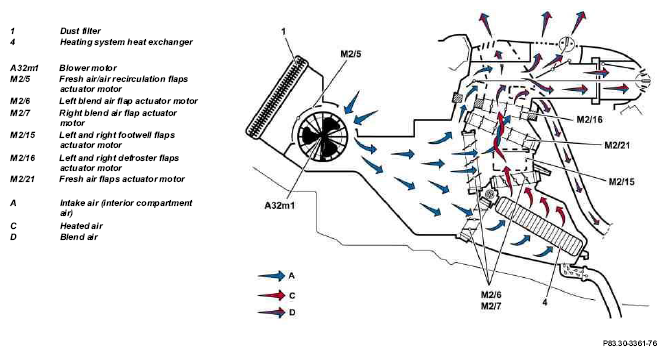

Fig 3: Identifying Function Of Heater Box Blended Air Mode With Recirculated Air

Blended air mode with recirculated air, function

During blended air mode with recirculated air, the intake air (A) is drawn in by the blower motor (A32m1) as a function of the position of the fresh air/air recirculation flap. After this, part of the intake air (A) is routed, as a function of the position of the blend air flaps, along the heater heat exchanger (4) through which the coolant flows and heated in the process.

The other part oft the interior air drawn in is diverted past the heater heat exchanger (4) and is then blended with the heated air (C) to form mixed air (D). The mixed air (D) is routed, as a function of the position of the footwell flaps, of the defroster flaps and of the ventilation flaps, to the respective air outlets.

Blended air mode

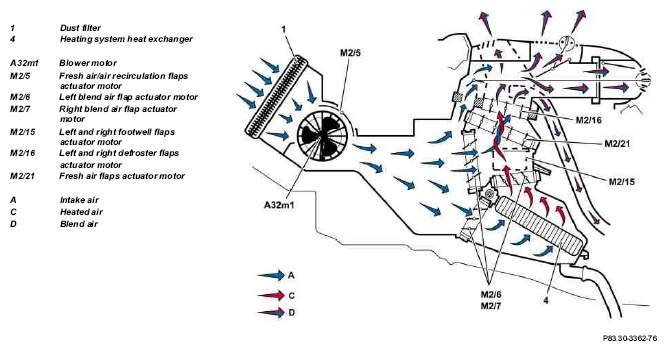

Fig 4: Identifying Function Of Heater Box Blended Air Mode

Blended air mode, function

In blended air mode, the intake air (A) is drawn in by the blower motor (A32m1) as a function of the position of the fresh air/air recirculation flap and cleaned by the dust filter (1). After this, part of the intake air (A) is routed, as a function of the position of the blend air flaps, along the heater heat exchanger (4) through which the coolant flows and heated in the process.

The other part oft the fresh air drawn in (A) is diverted past the heater heat exchanger (4) and is then blended with the heated air (C) to form mixed air (D). The mixed air (D) is routed to the respective air outlets as a function of the position of the footwell flaps, of the defroster flaps and of the ventilation flaps.
