Multifunction sensor location/task/function - GF83.10-P-2148P

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203 up to 31.5.01 with CODE (581a) Air conditioning (Automatic)

MODEL 203 as of 1.6.01 with CODE (581b) Convenience automatic air conditioning

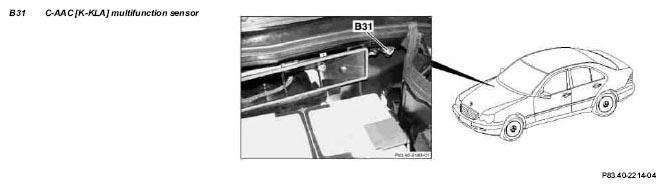

Fig 1: Locating C-AAC (K-KLA) Multifunction Sensor

Multifunction sensor, location	The C-AAC [K-KLA] multifunction sensor (B31) is located in the fresh air inlet at the rear right of the engine compartment.
AAC multifunction sensor, task	The C-AAC [K-KLA] multifunction sensor (B31) serves to record the following values: Ambient temperature air humidity pollutant concentrations of outside air
Multifunction sensor function		GF83.10-P-2135-02P
