Outside temperature sensor, location/task/design/function - GF83.57-P-2103R

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 230

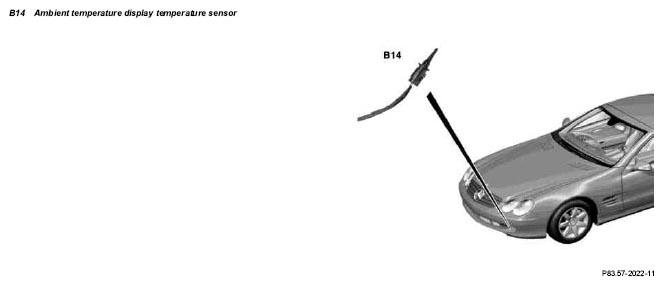

Fig 1: Locating Ambient Temperature Display Temperature Sensor - Model 230

	Outside air temperature sensor position	The outside temperature indicator temperature sensor (B14) is in the bumper, at the left-hand side.
	Outside air temperature sensor purpose	Recording outside temperature as electrical value for displaying the outside temperature on the instrument cluster (A1) and controlling various functions that are dependent on the outside air temperature.
	Outside air temperature sensor design	The sensor is in a housing made from top quality plastic that is firmly clipped to the vehicle.
	Outside air temperature sensor function	The outside temperature indicator temperature sensor (B14) is a temperature dependent resistance with negative temperature coefficients (NTC). The outside temperature indicator temperature sensor (B14) changes its resistance with increasing temperature .
