Outside temperature sensor, location/task/design/function - GF83.57-P-2103S
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 215, 220
Shown on MODEL 220

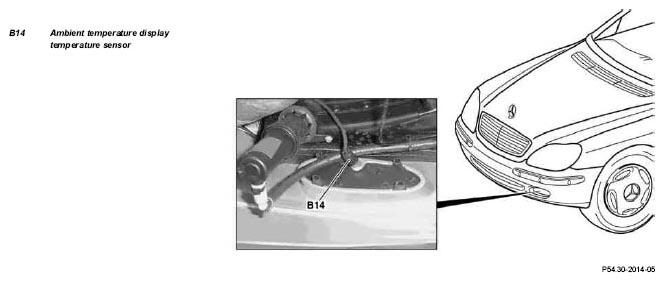

| Outside air temperature sensor position | The ambient temperature display temperature sensor (B14) is located at the left side of the front bumper | ||
| Outside air temperature sensor task | The ambient temperature display temperature sensor (B14) records the ambient temperature. | ||
| Outside air temperature sensor design | The outside temperature display temperature sensor (B14) is a temperature-dependent resistance with negative temperature coefficient (NTC). | ||
| Outside air temperature sensor function | The outside temperature display temperature sensor (B14) records the outside air temperature, converts it into an electrical signal and transmits it to the left front SAM control unit. |
