Outside temperature sensor, location/task/function - GF83.57-P-2110PP
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.0 /2 /7 as of 24.4.04

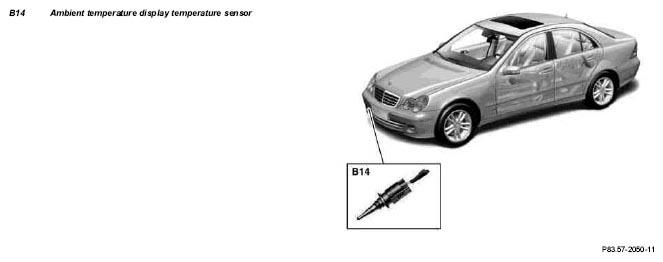

Illustrated on Model 203.0
| Outside air temperature sensor position | The ambient temperature display temperature sensor (B14) is located at the right side in the front bumper | ||
| Outside air temperature sensor task | To record the outside temperature. | ||
| Outside air temperature sensor function | The outside temperature display temperature sensor (B14) changes its resistance depending on the outside temperature. It is discretely read in by the front SAM control unit with fuse and relay module. |
