Pressure sensor, location/task - GF91.60-P-4106SK
MODEL 171.4 as of 1.6.06 with CODE (494) USA version

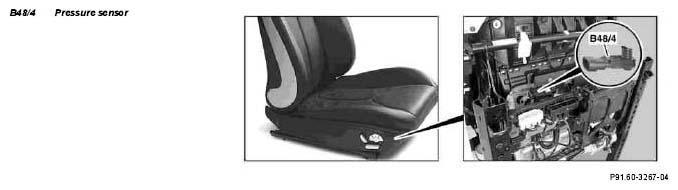

| Pressure sensor, location | The pressure sensor (B48/4) is located under the seat cushion on the front passenger seat frame. |
| Pressure sensor, task | The pressure sensor (B48/4) determines the applied weight on the front passenger seat by measuring the pressure in a mat filled with silicone. In addition to other parameters, the measured value is used by the Weight Sensing System (WSS) control unit to decide on the triggering of restraint system equipment. |
