ME-SFI limiting maximum vehicle speed, function - GF07.61-P-3019AMG

ENGINE 156.980 in MODEL 164, 251 up to Model Year 8

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221 up to Model Year 8

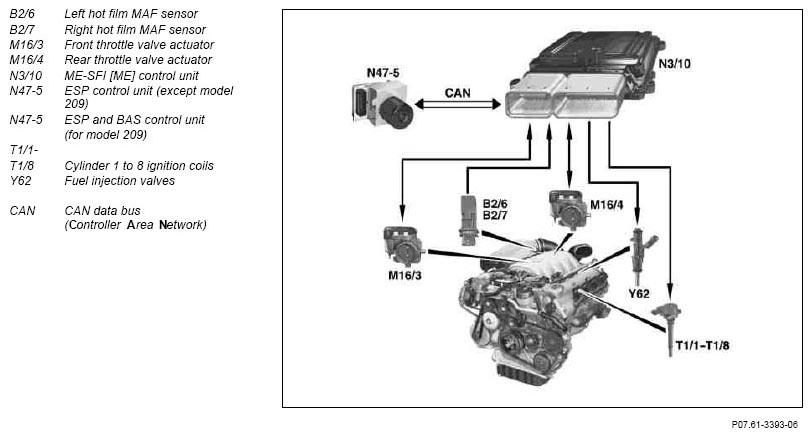

Fig 1: Identifying ME-SFI Limiting Maximum Vehicle Speed Function Diagram

Courtesy of MERCEDES-BENZ USA

In order to limit the maximum speed for vehicles with the appropriate engine output the throttle valve are closed appropriately upon reaching 250 km/h (for model 209 with code P98 Black Series 300 km/h) and the injection quantity reduced.

The ignition angle is also adjusted to "Late".

These measures ensure simple maximum speed limitation by reduction of the torque.
