Emission Control Visual Inspection Procedures - Diesel
›
1998-09 MERCEDES-BENZ
›
E300
›
Notes
1998-09 MERCEDES-BENZ: E300: Notes

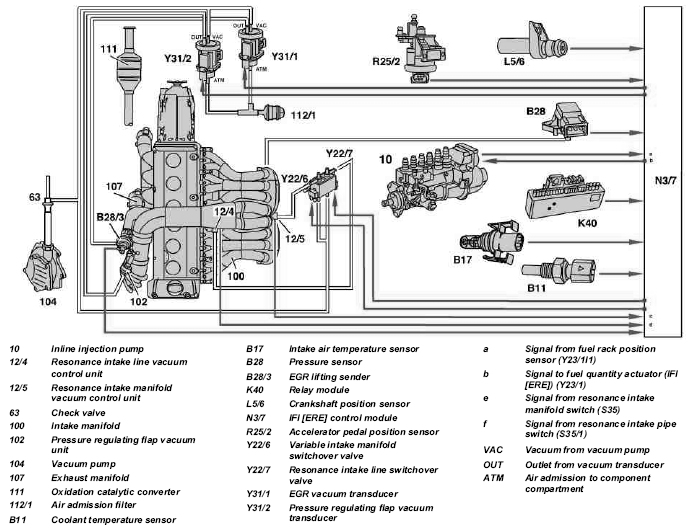

Fig 1: Emission Control System Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
