Regulating valve component description - GF27.60-P-5140GA

TRANSMISSION 722.6 in MODEL 204.0, 216, 221 up to Model Year 8

Control slide working pressure

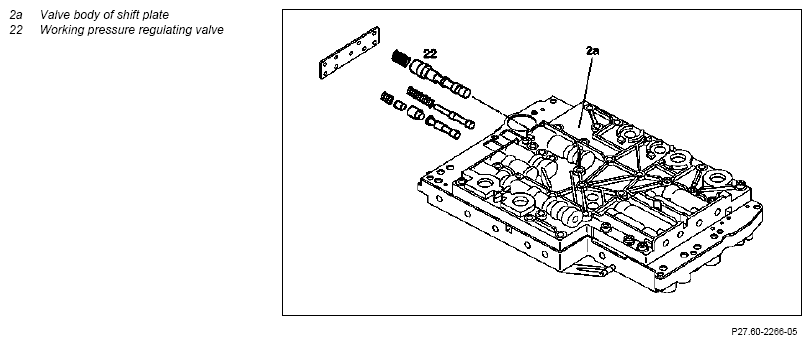

Fig 1: Identifying Regulating Valve Components Location

Courtesy of MERCEDES-BENZ USA

Location

The working pressure regulating valve is located in the valve body of the shift plate.

Task

It regulates the hydraulic system's primary pressure.

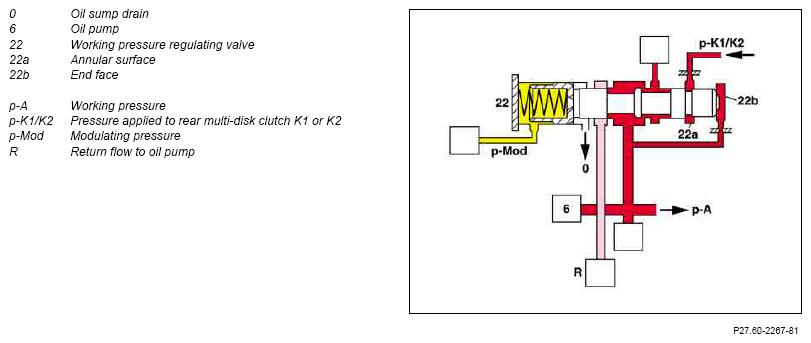

Fig 2: Identifying Regulating Valve Function Diagram

Courtesy of MERCEDES-BENZ USA

Function

The level of working pressure is regulated at the working pressure regulating valve depending on current load and the gear engaged. A minimum level (basic pressure) is adjusted by the spring in the working pressure regulating valve.
