Component description for spark plugs - GF15.10-P-2000AMG

ENGINE 156.980 in MODEL 164, 251 up to Model Year 8

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221 up to Model Year 8

Location

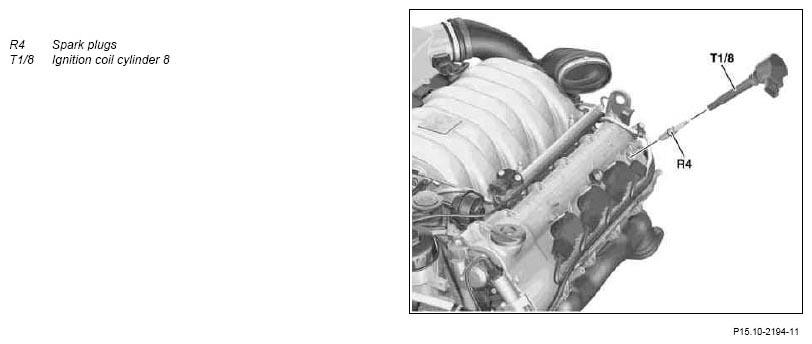

Fig 1: Identifying Spark Plugs And Ignition Coil Cylinder 8

Courtesy of MERCEDES-BENZ USA

On each cylinder, a spark plug is inserted from the top of the cylinder head to centrally in the combustion chamber.

Task

The spark plugs ignite the suctioned and compressed fuel-air mixture due to arcing between the electrodes.

Function

The ignition voltage flows from the ignition lines of the directly plugged in ignition coils to the spark plugs and causes arcing in the air gap between the central electrode and ground electrode.

All the spark plug characteristics are defined by the type symbols provided by the manufacturer (e.g. heat rating, seat shape, thread, width across flats, electrode material, spark position).
