Remove/install front seat control unit - AR91.29-P-1550SC
MODEL 216.3

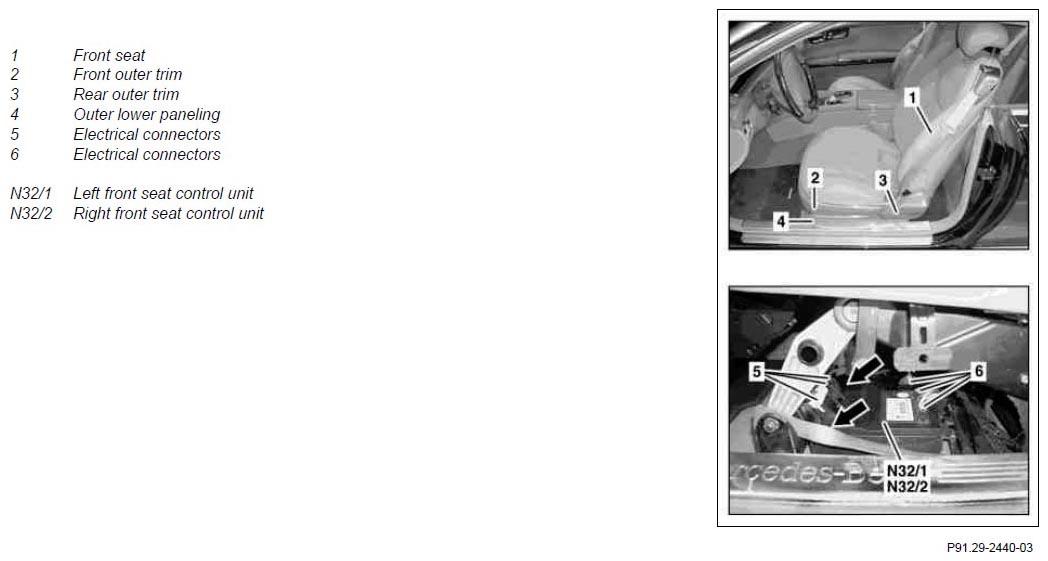

Shown on left front seat
MODIFICATION NOTES
| 3.5.07 | "Disconnect ground line and note on avoiding electrostatic charge" added |
| Remove/install | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| 1 | Remove outer front paneling (2), outer rear paneling (3) and outer bottom paneling (4) from left or right front seat (1) | AR91.10-P-1200SC |
| 2 | Disconnect ground cable | AR54.10-P-0003SX |
| 3 | Disconnect electrical connectors (5, 6) and unclip left front seat control unit (N32/1) or right front seat control unit (N32/2) (arrows) | |
| 4 | Install in the reverse order |
