Infrared receiver, location/task/design/function - GF80.20-P-4101T
MODEL 209.3/ 4
MODEL 211.0/ 2

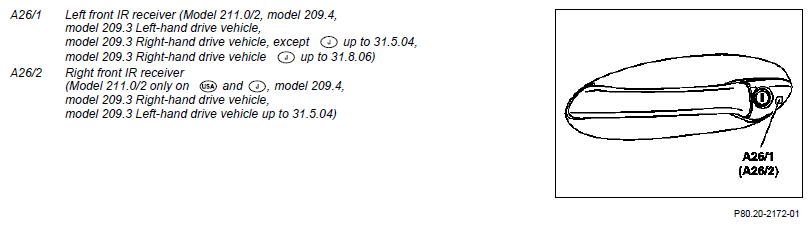

| Infrared receiver, location | The left front IR receiver (A26/1) and right front IR receiver (A26/2) is located in the lock cylinder guide of the corresponding front door |
| Infrared receiver, task | Receiving IR infrared signal of transmitter key. |
| Infrared receiver, design | The infrared receiver consists of an infrared sensitive semi-conductor with active actuation electronic circuitry. The receiver is flush-fitted behind a filter lens. |
| Infrared receiver, function | The infrared receiver converts the infrared signal from the transmitter key into an electrical signal. The electric signal is read in and relayed by the corresponding door control unit. |
