ME engine torque requirements function - GF07.61-P-4015V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.942 in MODEL 171 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.963 in MODEL 171 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

Shown on engine 272.963 in model 171

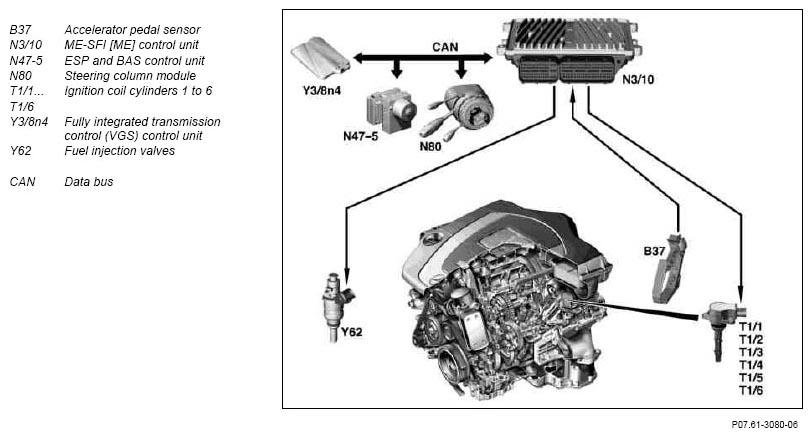

Fig 1: ME Engine Torque Requirements Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The function (torque interface) coordinates and prioritizes the requirements of all vehicle systems requiring torque. At the same time, the dynamics of the conversion for each requirement are established.

The engine torque is modified as follows:

Increase or reduction of injected volume
Early or late adjustment of the ignition angle (rapid)
Combination of both options
If the injected volume is increased and the ignition angle simultaneously adjusted to "late", the engine torque first stays the same, but the option is available to rapidly achieve a subsequent torque increase by early adjustment of the ignition angle (torque reserve).

The following functions can require an engine torque:

Driver preset
Transmission control/protection
ESP
Cruise control/Distronic
Torque limitation, e.g. during startup
Limitation of engine speed and max. speed
Ancillary assemblies (coolant compressor, generator, power steering pump)
Functions such as idle speed control and deceleration fuel shutoff.

Component description for the ME-SFI [ME] control unit

GF07.61-P-6000V
