Backrest release unit component description - GF91.29-P-5226GZ
MODEL 164.8 with CODE (845) 3rd seat row, electrically folding

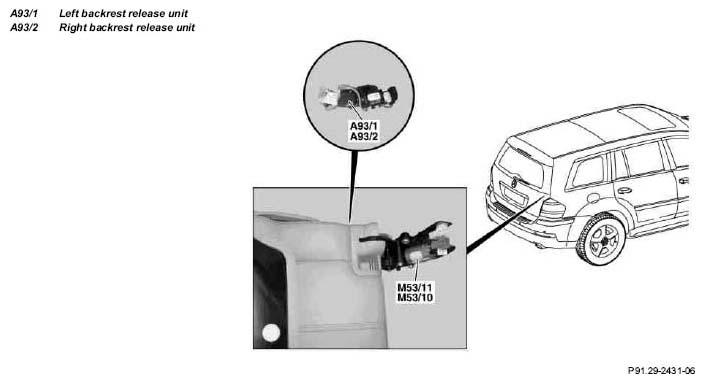

Location
The left backrest release unit and the right backrest release unit are at the side behind the seat paneling of the relevant seat in the 3rd seat row.
Task
- The end position of the relevant folded-over seat is read in using a limit position switch
- Unlocking switch actuation
- Unlocking motor actuation
