Seat adjustment, function - GF91.29-P-2005GZ
MODEL 164, 251 with CODE (242) Electrically adjustable front passenger seat with memory with CODE (275) Memory package (driver seat, steering column, mirrors)
Function requirements
- Circuit 15R ON or respective front door open (up to 31.5.07)
Function

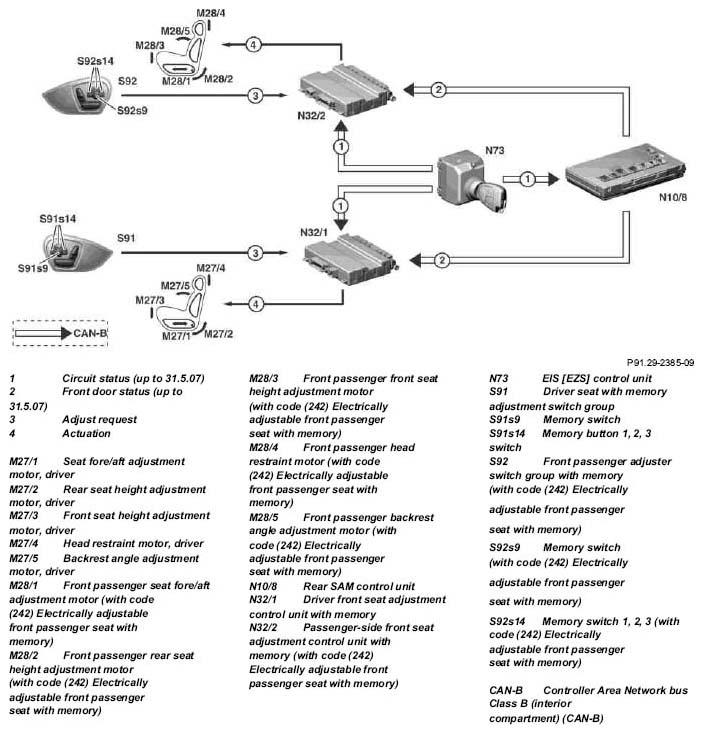

Actuation of the switch group, which is located on the front seat frame trim, is read in voltage-coded by each front seat adjustment control unit. The front seat adjustment control unit actuates the corresponding seat adjustment motors directly.
To adjust, press and hold down switches on the switch group until the desired position is reached.
Abort conditions:
- Overvoltage or undervoltage
| Adjustment function | Adjustment direction |
|---|---|
| Forward/back adjustment | Forward, back |
| Height adjustment (rear) | Up, down |
| Inclination adjustment | Up, down |
| Head restraint adjustment | Up, down |
| Backrest adjustment | Forward, back |
Priorities
The switch group is designed so that adjustment in group 1 is independent of any switch actuation in group 2 or group 3. If several adjustment requests are received in a group by the front seat adjustment control unit, then the adjustment request with the higher priority is executed. A maximum of three motors (one motor per group) can be adjusted simultaneously
See following table.
| Priorities | Group 1 | Group 2 |
|---|---|---|
| High 1 | Backrest forward/back | Forward/back adjustment |
| Center 2 | Head restraint adjustment | Height adjustment, rear (height) |
| Low 3 | Inclination adjustment |
| Front seat adjustment motor group with memory, component description | M27/1, M27/2, M27/3, M27/4, M27/5; M28/1, M28/2, M28/3, M28/4, M28/5 (with code (242) Electrically adjustable front passenger seat with memory) | GF91.29-P-5219GZ |
| Component description of driver-side front seat adjustment control unit with memory | N32/1 Model 164 |
GF91.29-P-5223GZ |
| Model 251 | GF91.29-P-5223RT | |
| Component description of passenger-side front seat adjustment control unit with memory | N32/2 Model 164 with code (242) Electrically adjustable front passenger seat with memory |
GF91.29-P-5224GZ |
| Model 251 with code (242) Electrically adjustable front passenger seat with memory | GF91.29-P-5224RT | |
| Front seat adjustment switch group, component description | S91; S92 (with code (242) Electrically adjustable front passenger seat with memory) |
GF91.29-P-5220GZ |
