Remove/install starter - AR15.30-P-7100RTZ
Engine 276 in model 251
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003RT | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove the respective engine compartment paneling | AR61.20-P-1105RT | |
| 3 | Remove right catalytic converter | Engine 276.8 in model 251 | |
| AR49.10-P-5500GQC | |||

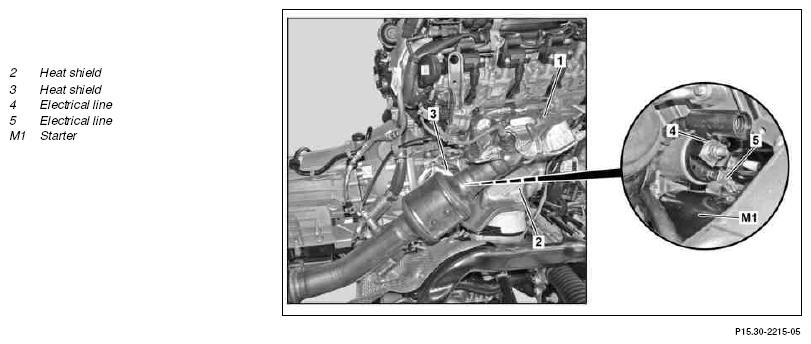

| 4 | Remove heat shield (2) | Engine 276.8 in model 251 | AR22.10-P-4330GQC |
| Engine 276.9 in model 251 | AR22.10-P-1260GQ | ||
| 5 | Remove heat shield (3) | ||
| 6 | Unfasten oxygen sensor wiring holder downstream of CAT at transmission | Engine 276.8 in model 251 | |
| 7 | Remove screw/bolts for starter (M1) | *BA15.30-P-1003-01J | |
| 8 | Detach contact protection on circuit 30 and remove electrical line (4) for circuit 30 on starter (M1) | *BA15.30-P-1001-01J | |
| 9 | Detach electrical line (5) for circuit 50 at starter (M1) | *BA15.30-P-1002-01J | |
| 10 | Remove starter (M1) from below | ||
| Check | |||
| 11 | Unfasten charge air cooler and pull to the front with attached coolant lines | Engine 276.8 in model 251 | |
| AR09.41-P-6819GQC | |||
| 12 | Check ring gear at the drive plate for damage and wear | When replacing the starter (M1) |
|
If there are problems: ↓ Replace drive plate |
Fig 2 | ||
| 13 | Install in the reverse order |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase | Nm | 40 |
