Power flow in 6th gear, function - GF27.10-P-3021GZ
TRANSMISSION 722.9 in MODEL 164.1/8, 204.0, 216, 221, 251.0/1 up to Model Year 8
The Ravigneaux gear set consists of the following components:
- Short planet gears
- Long planet gears
- Small internal-geared wheel
- Dual planet carrier
- Sun gear (7)
- Large internal-geared wheel
The front single planetary gear set consists of the following components:
- Planetary gears (52)
- Internal-geared wheel (12)
- Planet carrier (13)
- Sun gear (14)
The rear single planetary gear set consists of the following components:
- Planetary gears (51)
- Internal-geared wheel (9)
- Planet carrier (10)
- Sun gear (11)

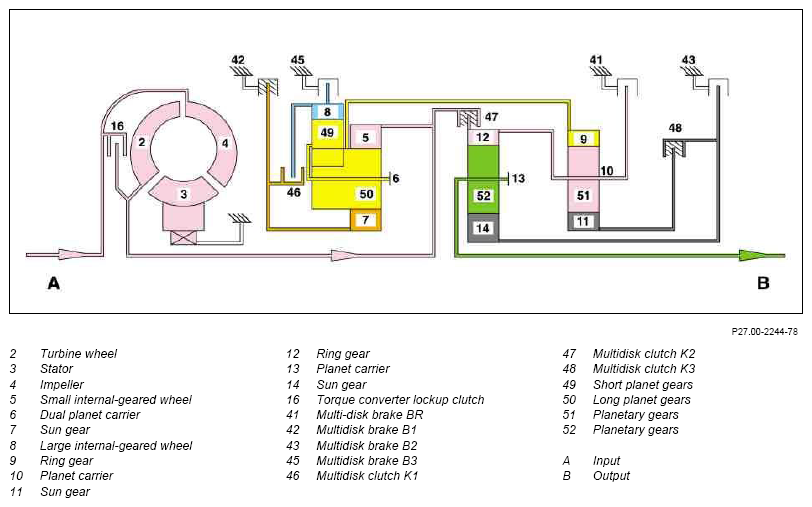

Power flow in 6th gear, function
The following multi-disk brakes and multi-disk clutches are engaged:
- Multidisk brake B1
- Multidisk clutch K2
- Multidisk clutch K3
Ravigneaux gear set
The small ring gear is driven via the transmission input shaft. The long planetary gears roll over the stalled sun gear (7) and transmit the increased torque and reduced rotational speed to the dual planet carrier.
Single rear planetary gear system
The ring gear (9) rotates at the same speed due to the mechanical connection to the dual planet carrier. The planetary gears (51) transmit the rotary motion to the sun gear (11). Sun gear (11) passes on the rotational speed to sun gear (14) via the engaged multidisk clutch K3.
Single front planetary gear system
The transmission input torque and transmission input speed are transmitted to the ring gear (12) by the engaged multidisk clutch K2. The speed difference between the sun gear (14) and ring gear (12) results in a speed increase and torque reduction. These are passed on via the planet carrier (13) to the transmission output shaft. The transmission output shaft thus rotates with reduced transmission input speed in the direction of rotation of the engine.
