Control Units
CONTROL UNITS LOCATION

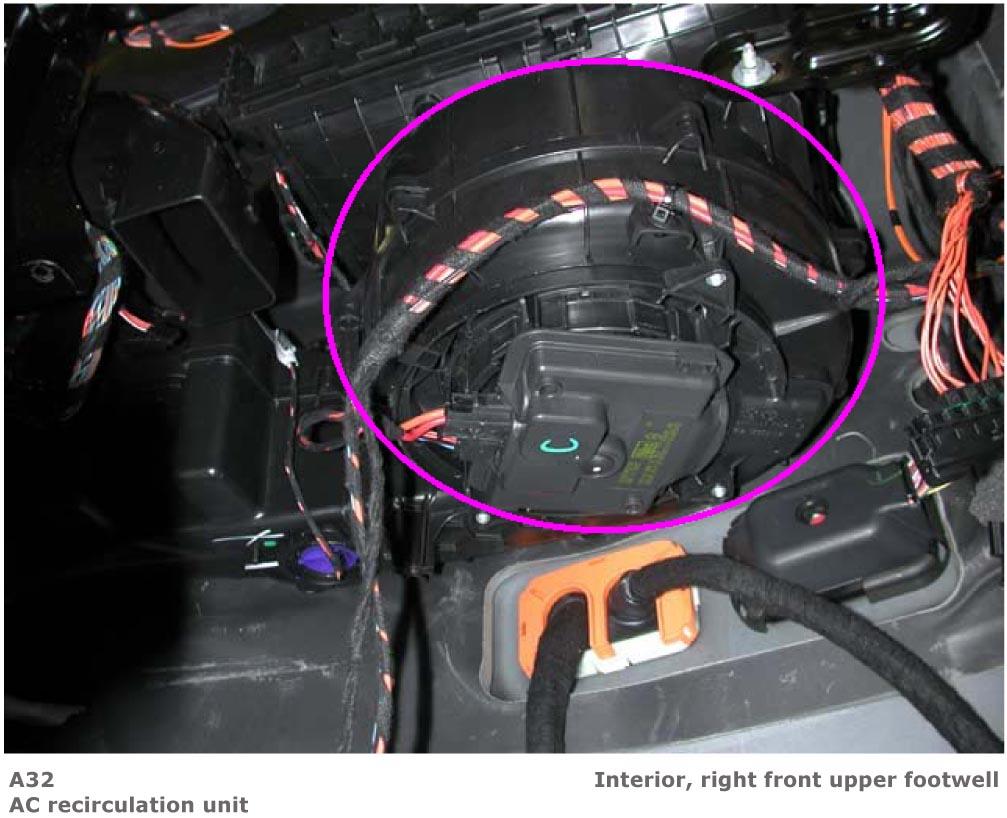

| Component | Location |
|---|---|
| AdBlue Control Unit (N118/5) | Rear of cargo area. See Figure. |
| AdBlue Delivery Module (A103/2) | Top of fuel tank. See Figure. |
| AdBlue Tank Module (A103/1) | Top of fuel tank. See Figure. |
| AIRmatic W/ADS Control Module | Right front footwell. See Figure. |
| Blower Regulator | On bottom of blower motor. See Figure. |
| Booster Blower Electronic Blower Controller | On blower motor. |
| CDI Control Module | Left front of engine compartment. |
| Central Gateway Control Module | In left front footwell. See Figure. |
| DC/AC Converter Control Unit (115V Socket) | Right side of cargo area. |
| DTR Control Unit | Behind center front bumper. |
| Electric Control Unit (VGS) | Under transmission housing. |
| Emergency Call System Control Unit | In left rear footwell. |
| ESP Control Module | Right front corner of engine compartment. See Figure. |
| Front Door Control Module (Left/Right) | In front of respective front door. |
| Front SAM Control Unit | Under right front seat. See Figure. |
| Front Seat Adjustment Control Module With Memory (Driver/Passenger) | Under respective front seat. |
| Front Seat Ventilation Blower Regulator (Left/Right) | In respective front seat back. |

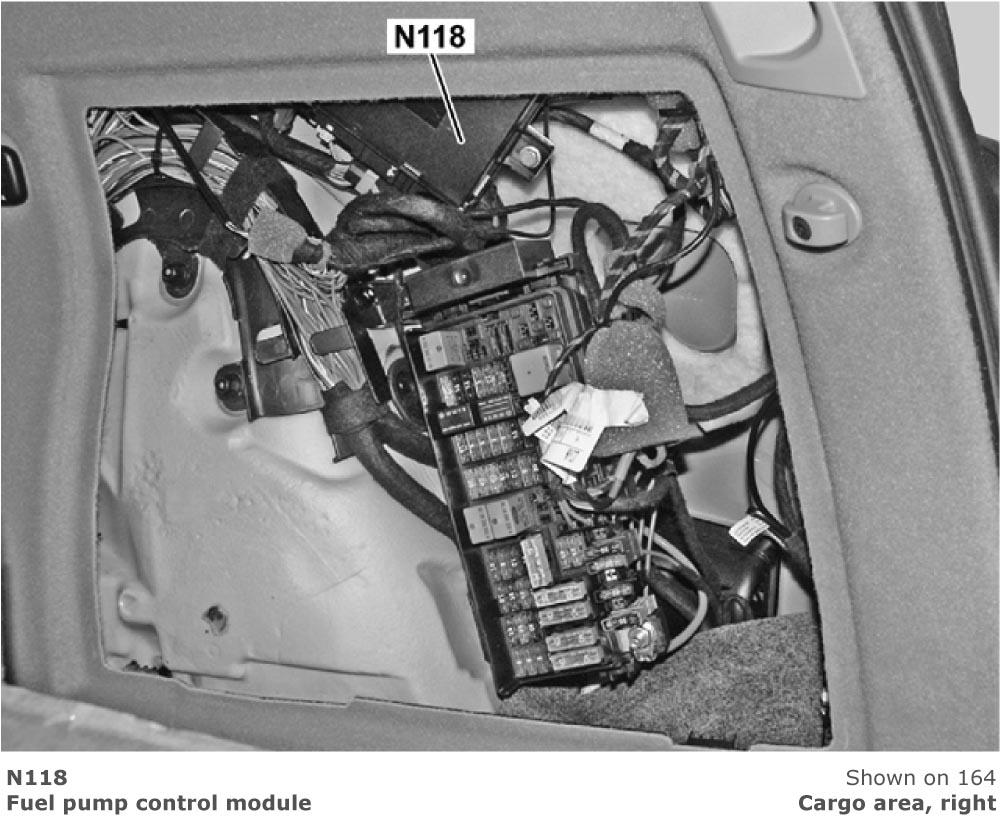

| Fuel Pump Control Module | Right side of cargo area. See Figure. |
| Fully Integrated Transmission Control (VGS) Control Unit (Y3/8n4) | Part of electric control unit (VGS). See Figure. |

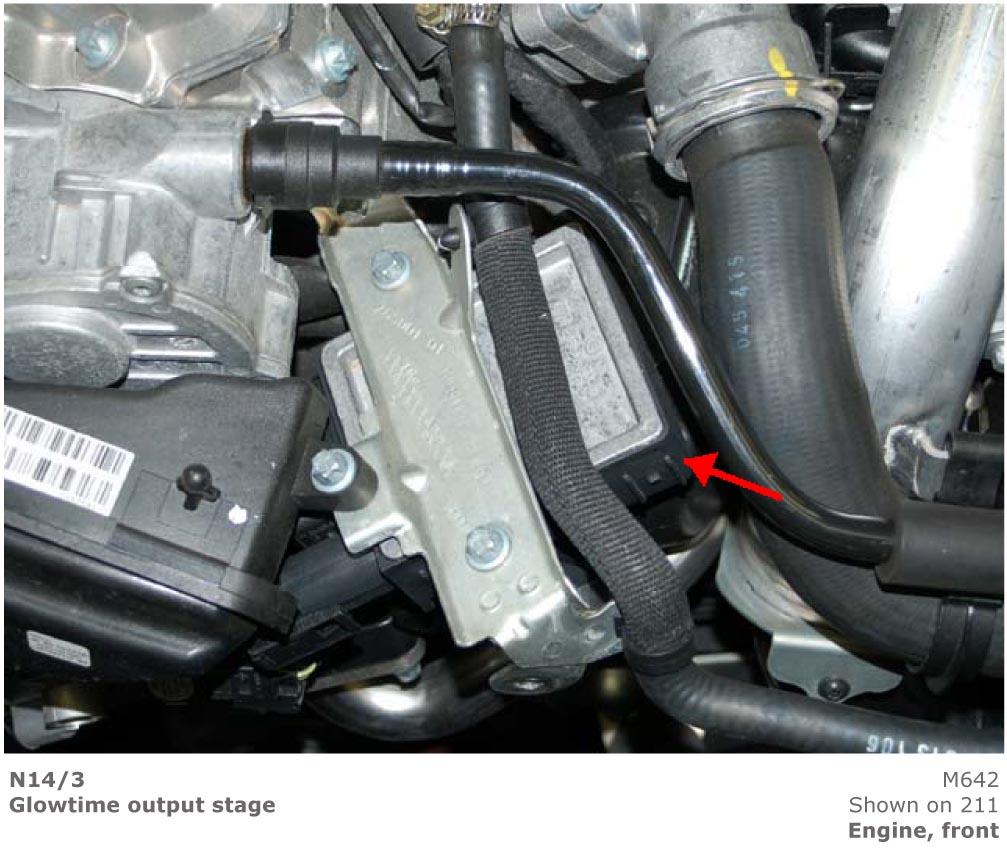

| Glowtime Output Stage | Front of engine. See Figure. |
| Headlamp Range Adjustment Control Module | In right front footwell. See Figure. |
| High-Definition Tuner Control Unit | Under left rear seat. |
| HRA (LWR) Power Module (Left/Right) | Top of respective headlight unit. See Figure. |
| HS (SIH) Seat Ventilation & Steering Wheel Heater Control Unit | Under left seat of 2nd seat row. See Figure. |

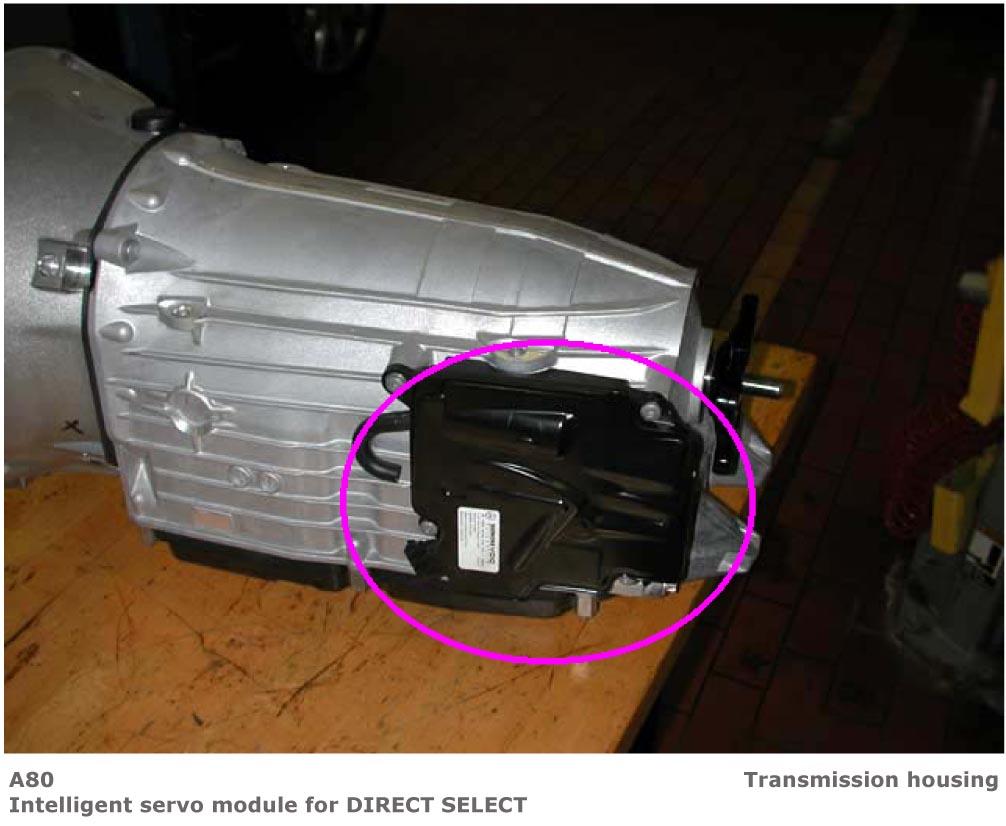

| Intelligent Servo Module (DIRECT SELECT) | Left rear of transmission. See Figure. |
| Keyless Go Control Module | Right side of cargo area. |
| Lumbar Support Regulator Control Unit (Driver/Passenger) | Inside respective front seat back. |
| Media Interface Control Unit | Right side of dash. |
| ME-SFI (ME) Control Module | Top center of engine. |
| Multifunction Steering Wheel Electronics Unit | Inside steering wheel. |

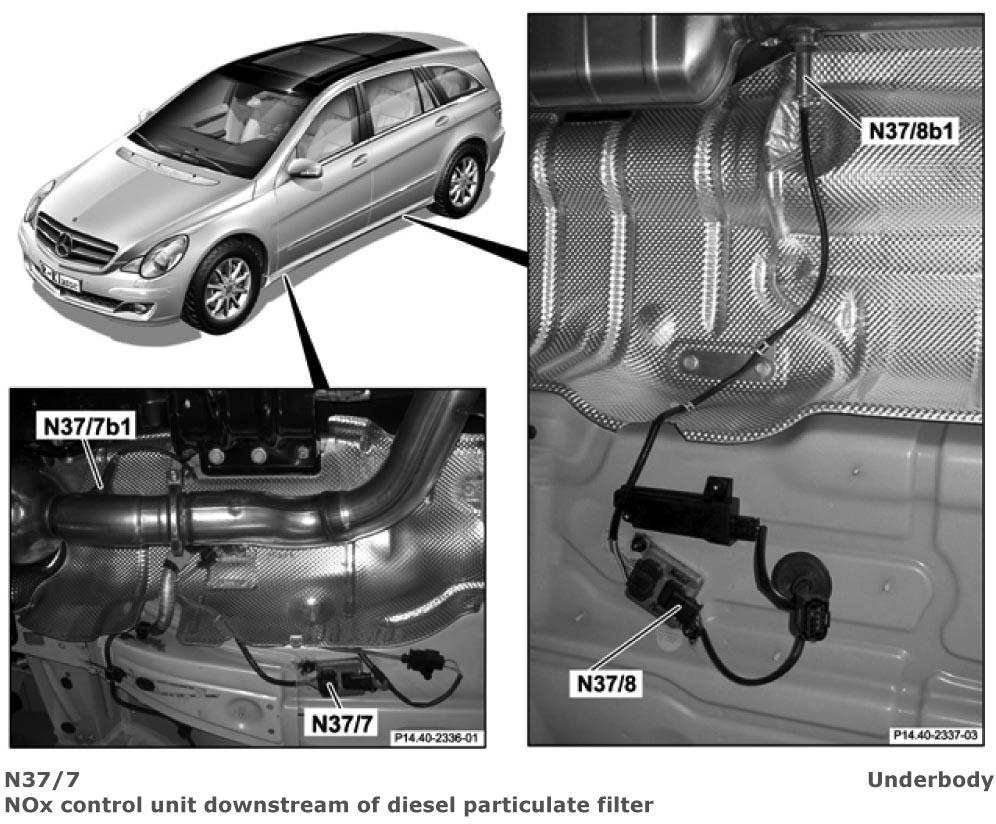

| NOx Control Unit Downstream Of Diesel Particulate Filter (N37/7) | Under center front of vehicle. See Figure. |
| NOx Control Unit Downstream Of SCR Catalytic Converter (N37/8) | Under center rear of vehicle. See Figure. |
| PTS Control Module | Under driver's seat. See Figure. |
| Rear Air Conditioning Blower Regulator | On rear blower motor. |
| Rear Audio Control Unit | Under driver's seat. |
| Rear Axle Level Control System Control Module | In right front footwell. See Figure. |

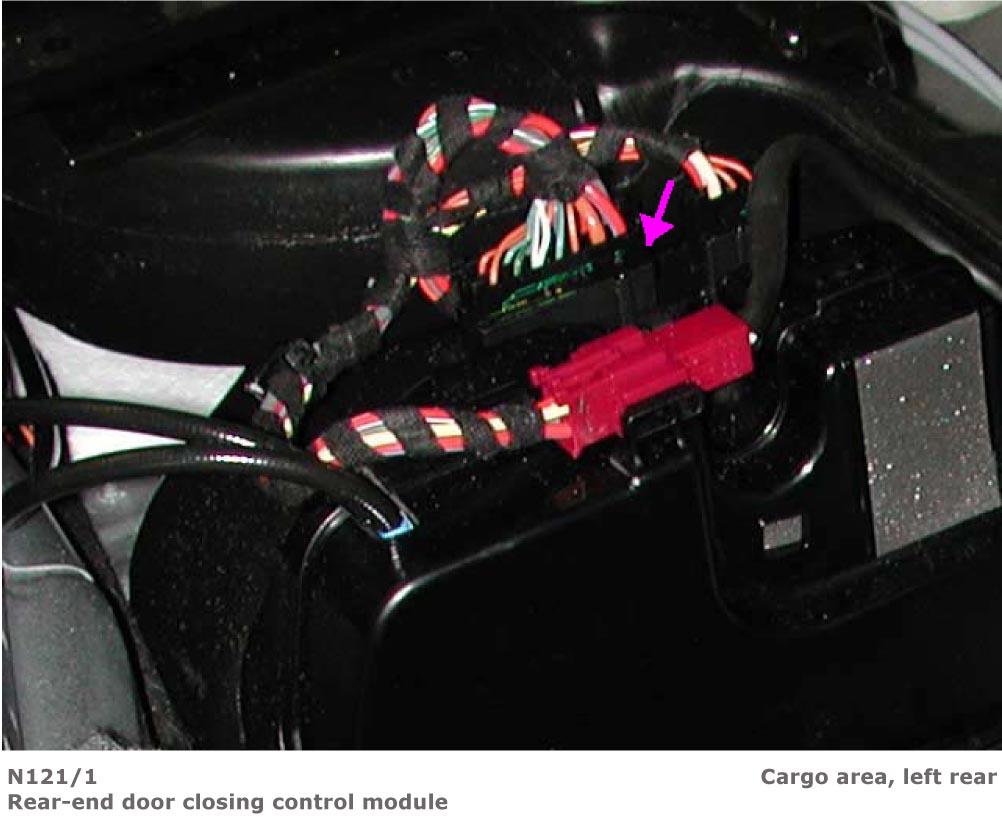

| Rear-End Door Closing Control Module | Left rear of cargo area. See Figure. |

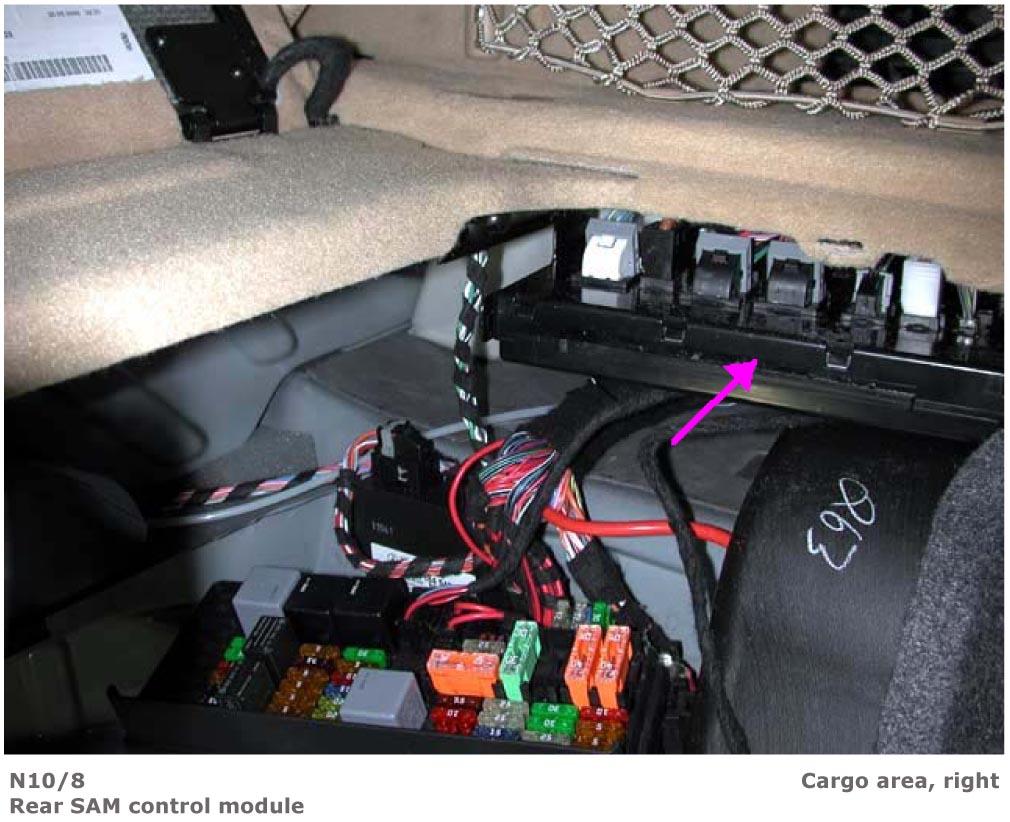

| Rear SAM Control Module | Right rear of cargo area. See Figure. |
| Restraints System Control Module | Under center console. See Figure. |
| SDAR Control Unit | In right rear footwell. See Figure. |
| Steering Column Module | Top of steering column. |
| TPM Control Module | Right rear of cargo area. See Figure. |
| Universal Portable CTEL Interface (UPCI (UHI)) Control Module | Under right seat of 2nd seat row. See Figure. |
| Voice Control System (VCS [SBS]) Control Unit | Right rear footwell. |
| WSS Control Unit (Weight Sensing System) | On right front seat frame. See Figure. |
