Read Out Battery Sensor Data (54.10/236)
Publication date: 2011-02-01Reference number: 54.10/236
READ OUT BATTERY SENSOR DATA
TECHNICAL SERVICE BULLETIN
Reference Number(s): P-B-54.10/236, Date of Issue:
February 1, 2011
| MERCEDES-BENZ: | Models 204, 207, 212 with Code B03 ECO star/stop function, and Models 216 and 221 |
| GROUP: | 54 - Electrical system, equipment and instruments |
SUBJECT
MY-All, Models 204, 207, 212 with Code B03 ECO star/stop function, and Models 216 and 221
Read Out Battery Sensor Data
As of the 204 launch in 2008, diagnosis read outs have been possible for the battery sensor data stored in the signal acquisition and actuation module (SAM), and the CAN bus keep a wake unit detection in the central gateway. This data is essential in ascertaining reasons for a discharged battery. This is described in SD media as of 11/2010 for the 204, 207, and 212 models.

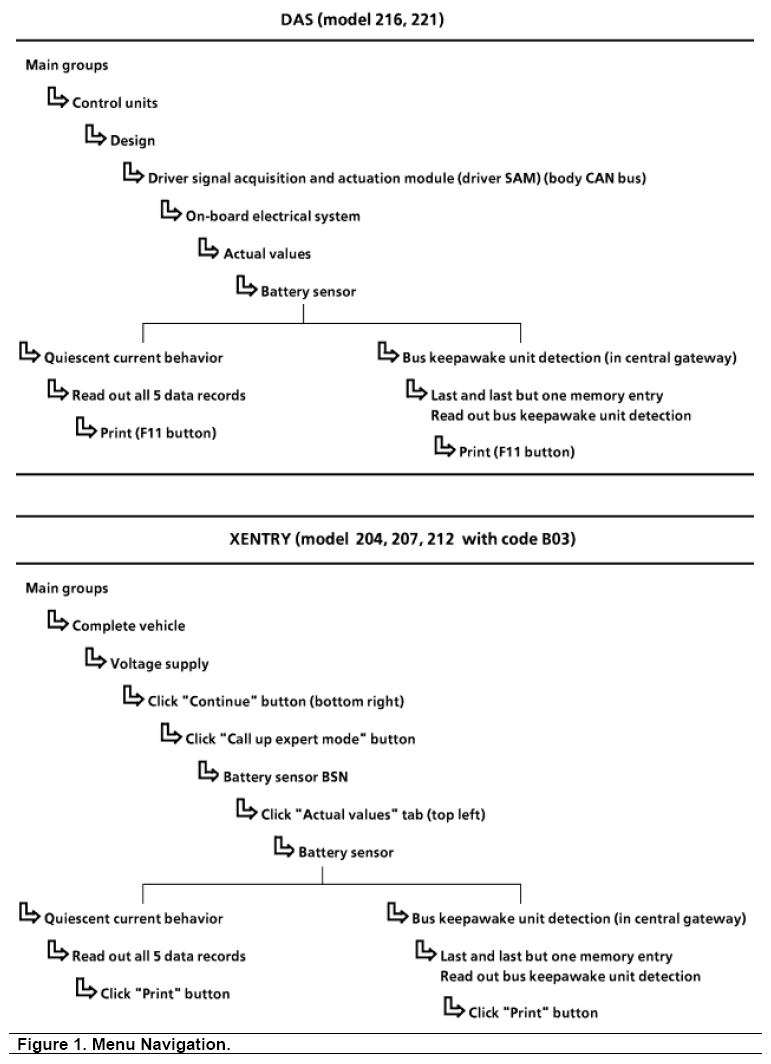

The menu navigation for reading out the battery sensor data in Xentry or DAS is Illustrated in Fig. 1 below.
