Side impact, function - GF91.60-P-2005GZ

MODEL 164 up to Model Year 08

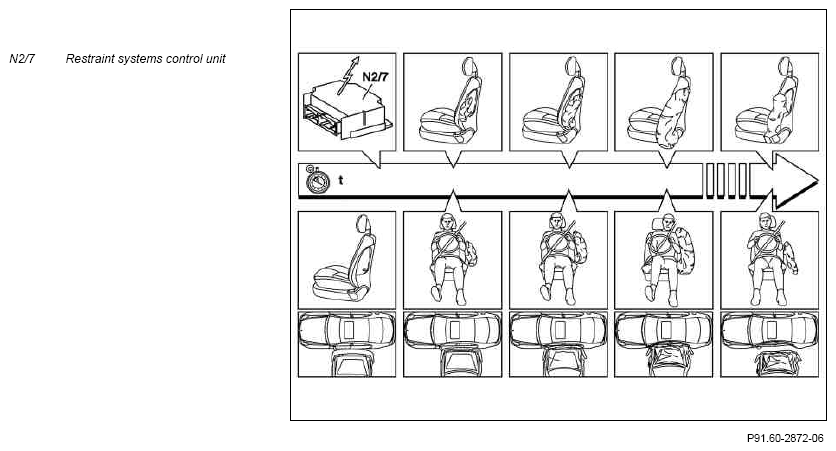

Sequence of a front sidebag deployment in the event of a side impact

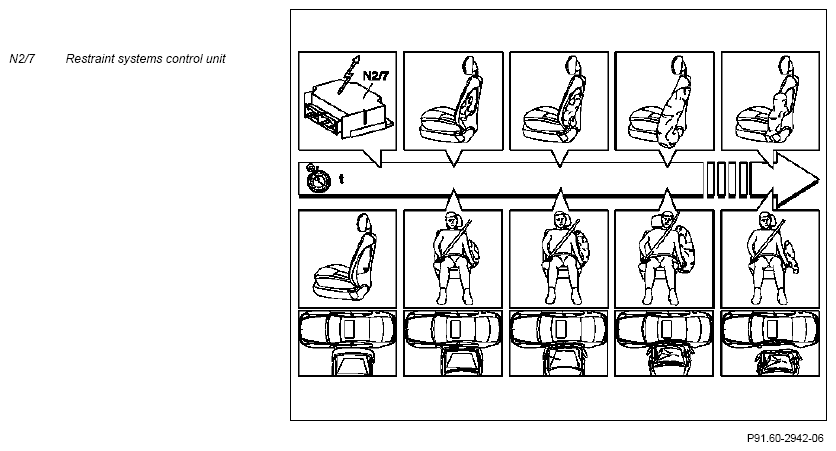

Sequence of a rear sidebag deployment in the event of a side impact

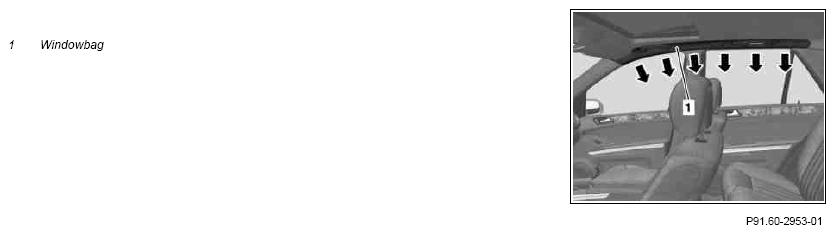

Location of windowbag

The sequence of the windowbag deployment runs parallel to deployment of the front and rear sidebags and protects the occupants on each side in the event of a side impact in the area of the windows from the A- to the C-pillars against injury.

If the driver sidebag sensor (A53), front passenger sidebag sensor (A54), driver door pressure sensor (B48/7), front passenger door pressure sensor (B48/8), rear door pressure sensor, driver-side (B48/9) and rear door pressure sensor, passenger-side (B48/10) recognize a side impact, then the corresponding acceleration data or pressure values are transmitted to the restraint systems control unit.

If the triggering threshold is exceeded, the restraint systems control unit sends trigger pulses to the corresponding restraint systems.

The following squibs are ignited in the event of a side collision from the left:

• driver sidebag squib (R12/9)
• left 2nd row sidebag squib (R12/11)
• left windowbag squib (R12/16)

The following squibs are ignited in the event of a side collision from the right:

• front passenger sidebag squib (R12/10)
• right 2nd row sidebag squib (R12/12)
• right windowbag squib (R12/17)

Only with CODE (494) USA version

In the event of a collision and if the corresponding triggering threshold is exceeded, then a signal is sent from the restraint systems control unit to the emergency call system control unit (N123/4) and an automatic emergency call is made.

	Sidebag sensor component description		GF91.60-P-4034GZ
	Driver/front passenger sidebag component description		GF91.60-P-4039GZ
	Rear sidebag component description		GF91.60-P-4040GZ
	Windowbag component description		GF91.60-P-4041GZ
	Restraint systems control unit, component description		GF91.60-P-4048GZ
	Pressure sensor, component description		GF91.60-P-4109GZ
