Interwheel differential lock, function - GF28.60-P-3200GZ

MODEL 164.1 with CODE (430) Offroad package up to Model Year 08/Modification Year 07

MODEL 164.8 with CODE (430) Offroad package up to Model Year 08/Modification Year 07

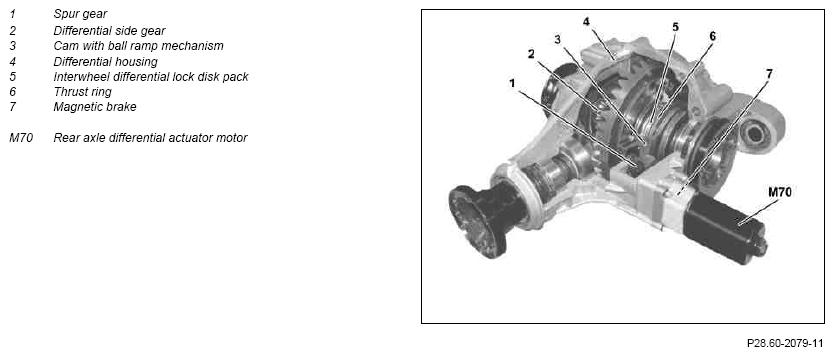

Fig 1: Identifying Interwheel Differential Lock Components
G10116014Courtesy of MERCEDES-BENZ USA

The driver can use a differential lock selector wheel (N72s34) located in the lower control panel (N72) to select between three different differential stages. The following differential settings are available in the "High" on-road ratio:

The following differential settings are available in the "Low" offroad ratio:

Each differential setting has a red LED to indicate the active state.

Specified locking torque

When the lock is actuated, the transfer case control unit (N15/7) calculates a specified locking torque according to the current operating state.

The information about the specified locking torque is sent by the transfer case control unit via the CAN data bus to the rear axle differential lock control unit (N15/9). This pre-control of the locking torque has the following advantages:

To allow calculation of the specified locking torque, the transfer case control unit requires the following information:

Lock control

The rear axle differential lock control unit regulates the distribution of the engine torque between the left and right rear wheels. The multidisk clutch (interwheel differential lock) is actuated via the rear axle differential actuator motor.

When the rear axle differential actuator motor is actuated by the rear axle differential lock control unit, the rear axle differential actuator motor rotates the eccentric with ball ramp mechanism (3) via the spur gear (1). Due to the ball ramp mechanism installed on the cam, the balls run up to their "ramps" when the cam is turned. This produces an axial movement of the cam. The cam pushes the thrust ring (6) against the interwheel differential lock disk pack (5). This produces a defined friction torque in the disk pack. The differential housing (4) and the differential side gear (2) are mutually locked.

In order to optimize fuel consumption, the position of the spur gear is maintained by the magnetic brake (7) in the rear axle differential actuator motor if the differential is permanently locked.

Safety concept

In the de-energized state (power failure) the interwheel differential lock is open.

Lock actuation on ABS/ESP control

The transfer case control unit must respond to the particular requirements of the ABS and ESP systems in order to avoid negative influences on directional stability and road adhesion. These requirements are made available to the rear axle differential lock control unit via the CAN data bus. For this purpose the transfer case control unit is capable of opening the interwheel differential lock. To guarantee this function, the following information is required:

Lock overload protection

The aim of the lock overload protection is to protect the interwheel differential lock against damage and guarantee the maximum possible availability of the lock function.

IMPORTANT After ignition "OFF/ON" for >10 s the 1st. stage of the differential lock is automatically activated, at less than 10 s the currently selected differential stage remains active.

Component description of transfer case control unit N15/7 GF28.19-P-3200GZ
Component description of rear axle differential lock control unit N15/9 GF28.19-P-3500GZ
Rear axle differential actuator motor, component description M70 GF28.19-P-3501GZ
Differential component description   GF28.50-P-1000GZ
Multidisk clutch, component description   GF28.50-P-1100GZ
