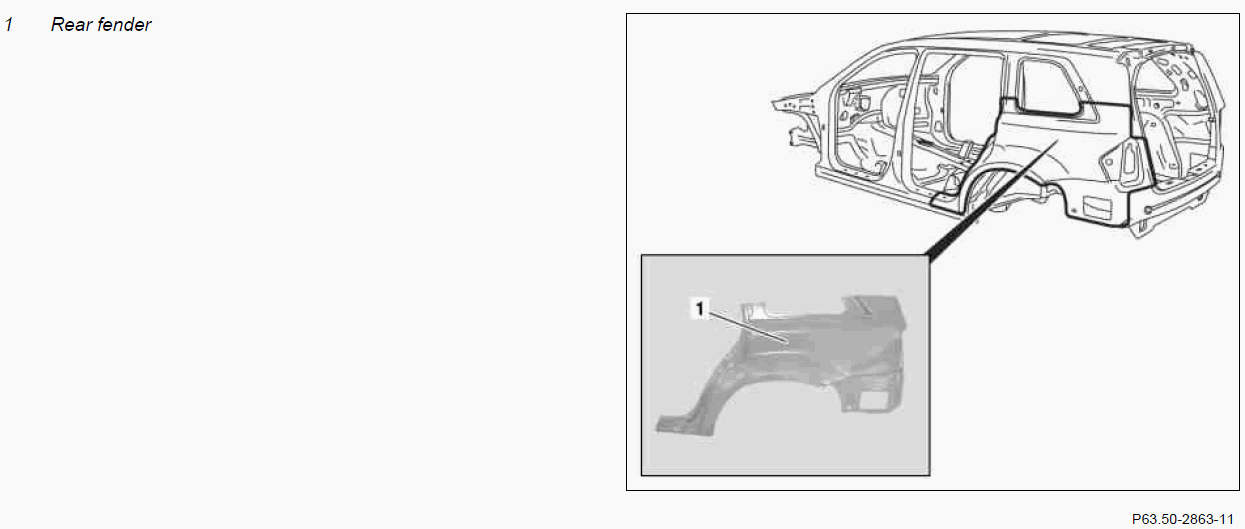

Completely replace rear fender - AR63.50-P-1400GY: Notes
| Removing | |||
|---|---|---|---|
| 1 | Remove detachable parts in the repair area | ||
| 2 | Cover detachable parts remaining in vehicle (area to be repaired). | Tarp (fire-resistant) | |
| 3 | Separate rear fender (1) | Set of cutting templates Template Spot weld milling cutter |
AR63.50-P-1400-02GY *164589042300 *164589082300 *201589005100 |
| 4 | Prepare connection points on body in area of rear fender (1). | Round wire brush, braided, dia. 70 mm Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) | AR63.50-P-1400-06GY |
| 5 | Prepare new rear fender (1) | Set of cutting templates Template |
AR63.50-P-1400-03GY *164589042300 *164589082300 |
| Install | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding spatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| 6 | Install rear fender (1) | AR63.50-P-1400-04GY | |
| Measures for preventing damage to vehicles or components when performing electric welding work | All models | AH00.00-N-0005-01A | |
| 7 | Clean repair areas | ||
| 8 | Prime area to be repaired using primer filler | ||
| 9 | Perform seam sealing after repair | AR97.10-P-4000GZ | |
| 10 | Paint repair areas and adjacent surfaces | ||
| 11 | Apply additional cavity preservation | AR97.20-P-1500GZ | |
| 12 | Remove tarp from vehicle | Tarp (fire-resistant) | |
| 13 | Reinstall all detachable parts removed | ||
