Selector valve component description - GF27.60-P-5143G

TRANSMISSION 722.6 in MODEL 204.0, 216, 221 up to Model Year 8

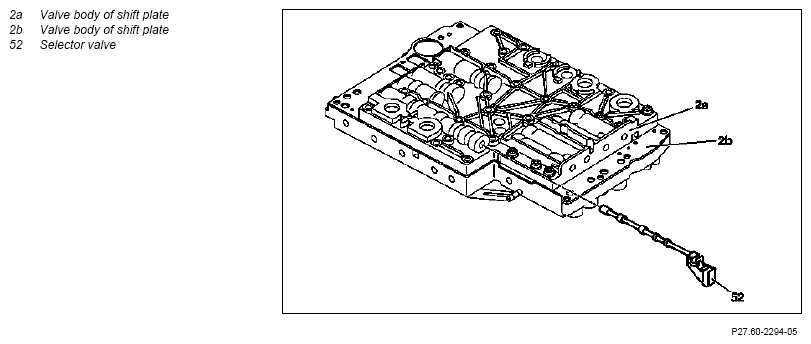

Fig 1: Identifying Selector Valve Components Location
G07622816Courtesy of MERCEDES-BENZ USA

Location

The selector valve is located in the valve body of the shift plate.

Task

It distributes pressure to the corresponding hydraulic components to match the gear selector switch position chosen by the driver.
