Multifunction sensor, component description - GF83.10-P-2192SX
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2011 Mercedes-Benz S65, 2011 Mercedes-Benz S600, 2011 Mercedes-Benz S550, 2010 Mercedes-Benz S65, and 2010 Mercedes-Benz S63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 216.3, 221.0 /1 up to Model Year 8
Shown on model 221.0
Location

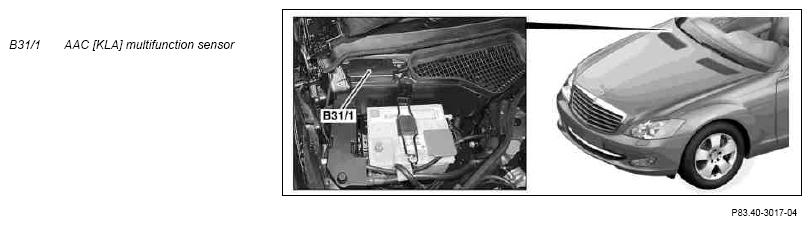

The multifunction sensor is located to the right in the engine compartment above the starter battery (G1/4).
Task
The multifunction sensor registers the following information about the outside air that is drawn in:
- Temperature
- Air humidity
- Pollutant concentration (carbon monoxide and nitrogen oxide)
Function
The data of the multifunction sensor are read in by the AAC [KLA] control unit (N22/1) via the AC bus. The AAC [KLA] control unit needs these as a basis for calculating climate control, recirculation air control, and for actuation of the refrigerant compressor (A9).
