Coolant temperature sensor function - GF07.04-P-5026-04M

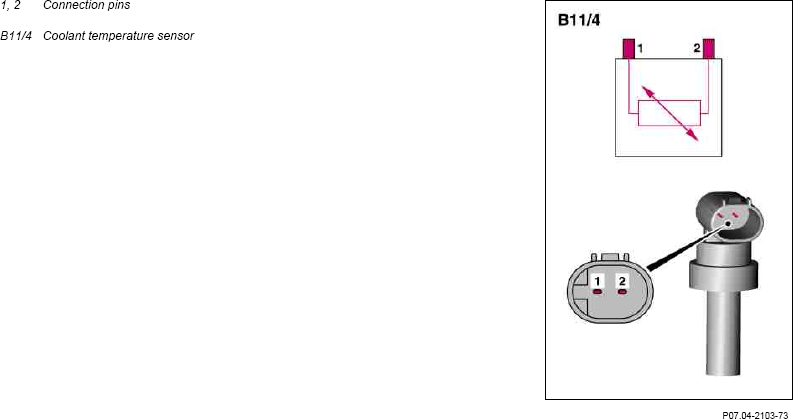

The NTC resistor integrated in the coolant temperature sensor (B11/4) alters its electrical resistance in line with the coolant temperature.
NTC is the abbreviation for "N egative T emperature C oefficient", which means electrical resistance falls as the temperature increases (hot conductor).
| Example: | |
| Coolant temperature | Resistor |
| 20°C | 3090Ω±5% |
| 80 °C | 320Ω5% |
