Regulating valve component description - GF27.60-P-5140GD
TRANSMISSION 722.6 in MODEL 216, 221 up to Model Year 8
Control slide switch valve pressure

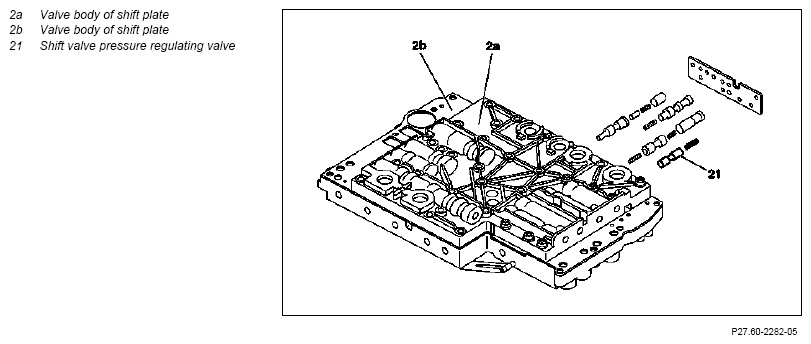

Location
The regulating valve shift valve pressure is located in the valve housing of the shift plate.
Task
It regulates the shift valve pressure.

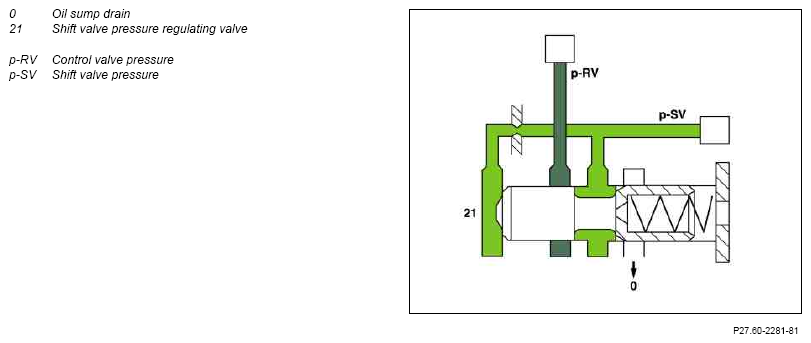

Function
The irregular control valve pressure is regulated on the regulating valve shift valve pressure to a constant shift valve pressure and used to supply the following solenoid valves:
- 1-2 and 4-5 shift solenoid valve (Y3/6y3)
- 3-4 shift solenoid valve (Y3/6y4)
- 2-3 shift solenoid valve (Y3/6y5)
- Torque converter lockup PWM solenoid valve (Y3/6y6)
