Component Description For Transmission Oil Temperature Sensor - GF27.19-D-4017HAG
TRANSMISSION 722.9 in MODEL 906

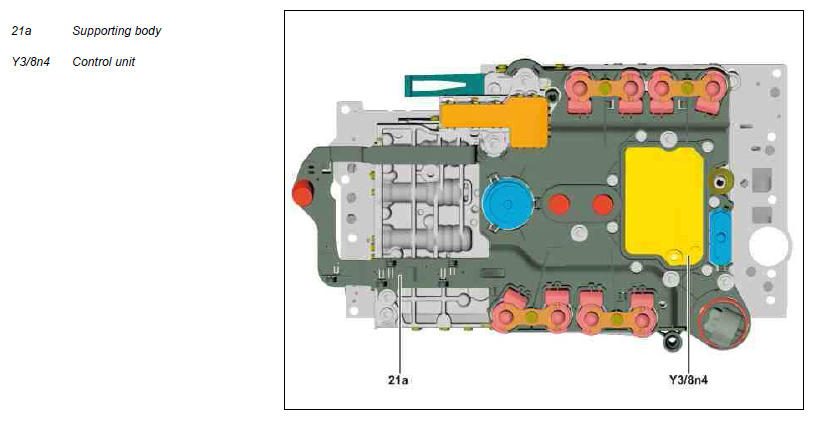

Top view of electric controller unit (Y3/8)
Location
The transmission oil temperature sensor (Y3/8s2) is integrated into the control unit.
Task
The transmission oil temperature sensor detects the transmission oil temperature. This is processed as an input factor by the control unit.
Design
The transmission oil temperature sensor has a measuring resistor with a negative temperature coefficient (NTC).
NTC stands for "N
egative T
emperature C
oefficient", which means that the electrical resistance decreases as temperature rises (NTC thermistor).
