Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1, Conn. I2)

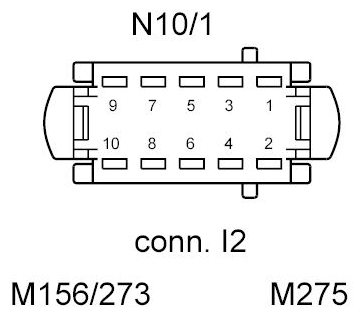

Fig 1: Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1, conn. I2)
G11072630Courtesy of MERCEDES-BENZ USA
