Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1, Conn. MR4)

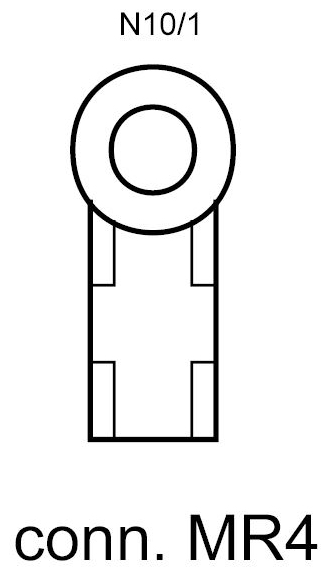

Fig 1: Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1, conn. MR4)
G11072636Courtesy of MERCEDES-BENZ USA
