Driver/passenger sidebag, component description - GF91.60-P-4039SX

MODEL 216.3, 221.0/1 up to Model Year 8

Shown on model 221.0

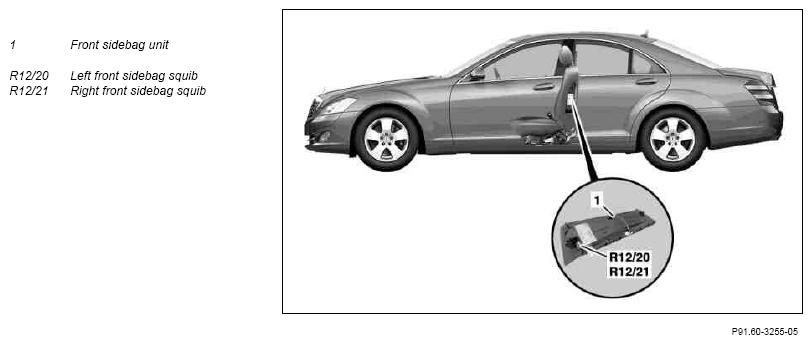

Fig 1: Identifying Left/Right Front Sidebag Squib And Front Sidebag Unit - Shown On Model 221.0

Courtesy of MERCEDES-BENZ USA

Location

The sidebag units are located in the outer side of the driver and front passenger seat backrests.

Task

If a side impact occurs in the door and B-pillar area, the sidebag units protect the driver and the front passenger from injury.

Triggering is conducted by the restraint systems control unit (N2/7) igniting each of the squibs.
