Remove/install rear window - AR67.20-P-3550GZ: Notes
MODEL 164
Shown on model 164.1
| Remove | |||
|---|---|---|---|
| 1 | Remove wiper arm of rear-end door | AR82.30-P-6910GZ | |

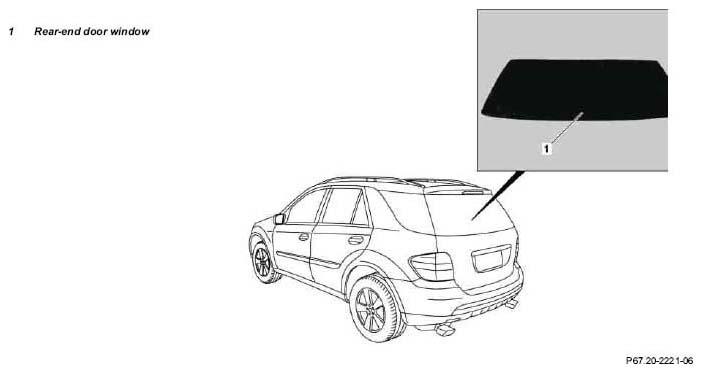

| 2 | Open crank window on one of front doors. | Open the crank window for the duration of the curing time to prevent the rear-end door window (1) from being pressed outwards by the air pressure when the doors are closed. | |
| 3 | Switch off ignition and remove transmitter key from EIS [EZS] control unit | On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). |
|
| 4 | Remove door lining on rear-end door | AR72.20-P-3520GZ | |
| 5 | Remove tailgate wiper motor | AR82.30-P-6900GZ | |

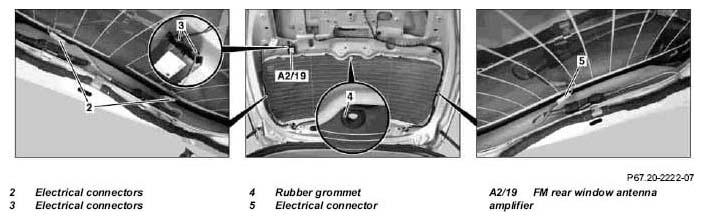

| 6 | Disconnect electrical connectors (2, 3) and fasten to rear-end door with adhesive tape. | Number of electrical connectors can vary depending on equipment. | |
| 7 | Disconnect electrical connector (5) and fasten to rear-end door with adhesive tape. | ||
| 8 | Pull out rubber grommet (4) | ||
| Risk of injury caused by slipping when clamping blade in the multicutter and by glass splinters when cutting out bonded windows | Always interrupt air supply when inserting or removing blade. Wear protective gloves and safety glasses. |
AS67.00-Z-0001-01A | |
| 9 | Cut out glass pane with cutting blade | AR67.20-P-3550-01GZ | |
| Cutting tool set | *WE58.40-Z-1011-03A | ||
| Cup suction tool | *WE58.40-Z-1029-11A | ||
| Install | |||
| 10 | Prepare body flange on rear window for glazing | AR67.20-P-2000-09GZ | |
| Scraper | *WH58.30-Z-1016-04A | ||
| Replacement blade for scraper | *WH58.30-Z-1017-04A | ||
| Repair kit | *BR00.45-Z-1015-02A | ||
| 11 | Install new rubber window spacers on rear-end door | AR67.20-P-3550-02GZ | |
| Repair kit | *BR00.45-Z-1015-02A | ||
| 12 | Prepare rear window for glazing | AR67.20-P-1000-07GZ | |
| Repair kit | *BR00.45-Z-1015-02A | ||
| 13 | Remove protective foil from rubber window spacers. | ||
| 14 | Prepare glue cartridge | AR67.10-P-1000-07R | |
| Betapower II (2-component electric cartridge gun) | *WH58.30-Z-1002-20A | ||
| Repair kit | *BR00.45-Z-1015-02A | ||
| 15 | Apply glue to rear window | AR67.20-P-2000-08GZ | |
| Betapower II (2-component electric cartridge gun) | *WH58.30-Z-1002-20A | ||
| Repair kit | *BR00.45-Z-1015-02A | ||
| 16 | Install window | After installing the rear-end door window the vehicle should not be moved before the glue has dried (comply with manufacturer's specifications). | AR67.20-P-3550-05GZ |
| Cup suction tool | *WE58.40-Z-1029-11A | ||
| 17 | Insert rubber grommet (4) | ||
| 18 | Install tailgate wiper motor | AR82.30-P-6900GZ | |
| 19 | Connect electrical connectors (2, 3). | ||
| 20 | Connect electrical connector (5). | ||
| 21 | Install door lining on rear-end door | AR72.20-P-3520GZ | |
| 22 | Install wiper arm of rear-end door | AR82.30-P-6910GZ | |
| 23 | Check all electrical consumers in area repaired for proper function. | ||
| 24 | Close crank window in front door. |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1016-04A | Scraper |
| WH58.30-Z-1017-04A | Replacement blade for scraper |
| WH58.30-Z-1002-20A | Electric cartridge gun |
WORKSHOP EQUIPMENT
| WE58.40-Z-1011-03A | Cutting tool kit (compressed-air tool + blades) |
| WE58.40-Z-1029-11A | Cup suction tool for window removal and installation |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1015-02A | Repair kit | A 220 670 00 93 |
