Coding Injector In Me On An M278 (TT 03/14-C)

Publication date: 2014-03-01
Reference number: TT 03/14-C

CODING INJECTOR IN ME ON AN M278

DEALER TECH TOPICS; MARCH 2014

Reference Number(s): TT 03/14, Date of Issue: March 2014 Update from November 2013

MERCEDES-BENZ:	Models with Engine M278
GROUP:	07.70 - Direct injection gasoline injection and ignition system

TOPIC

When coding Injector in ME on an M278 the OEM sticker showing the original factory installed injectors is different on an M278 compared to a M276.

CAUSE / EXPLANATION

As long as an injector has not been replaced, there is a sticker at the front of the air engine that will show the injector coding. If still unsure whether injectors have been replaced, you can still cross reference data in Vedoc. Additionally, when injectors are replaced, please cross off the data for the replaced injector on the OEM sticker

CORRECTION

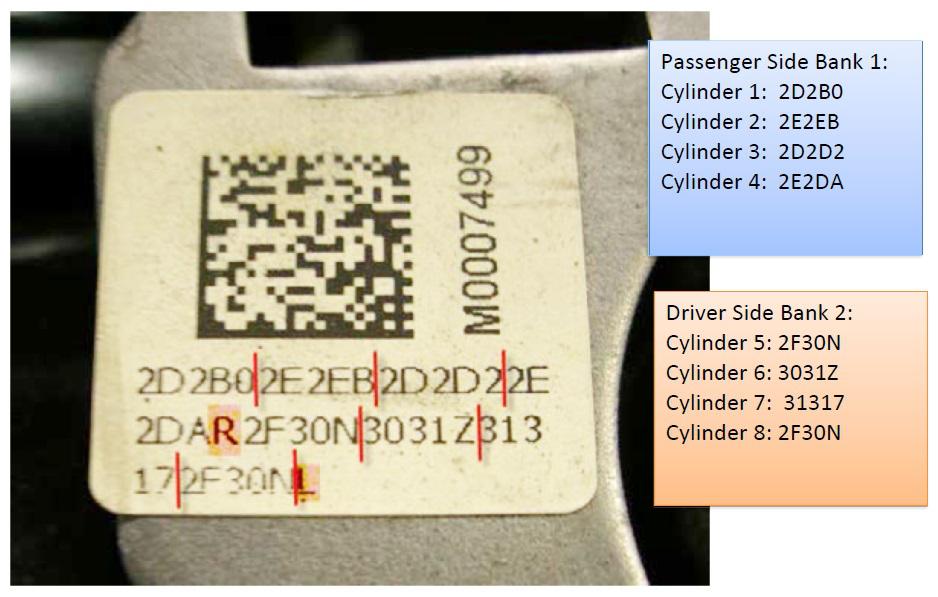

If coding M278 injectors, the five zero's & letter 'R' ("00000R") familiar from the M276 are not on the M278. Instead only the letter "R" separates the right bank injectors from the left bank injectors.
